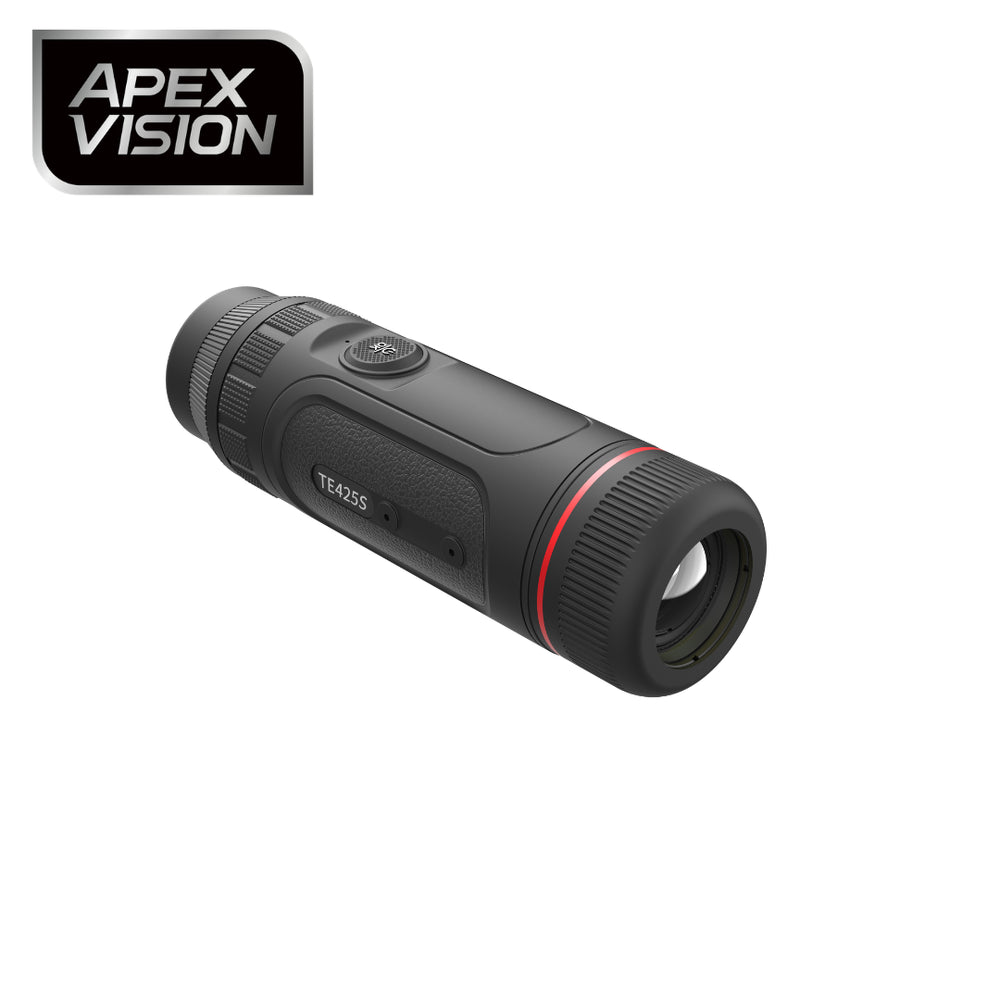

TE425S Thermal Monocular

TE425S Thermal Monocular

$1,499.00 AUD
$1,499.00 AUD
Sale Sold out
Tax included.
Specifications
Sensor 400×300 @12μm
Core technology Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type Uncooled VOx Infrared Detector, 8 to 14μm
NETD 15mK
Frame rate 50Hz
Objective lens 25mm, F0.9
Field of view 11.0° × 8.2°
FOV @100m 19×14 m
Magnification 1.9×–7.6×
Detection range 1300m / 1400yd
Focus Manual
Display 0.32" AMOLED 800×600
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 25mm; Diopter: -5 to +5; Zoom: 13.8×
Wi‑Fi 2.4G, 5G
Interface USB‑C (Charging/Power supply/USB2.0)
Others Microphone, Bluetooth
Recording Photo/Video (Audio included)
Memory 64 GB
Battery Built-in Battery
Operating time 5 hours (supports 20W quick charging)
Operating temp -20°C to 50°C / -4°F to +122°F
IP rating IP67
Weight 320g / 11.29oz
Size 157×51×47 / 6.18×2.01×1.85 in
Standard Device, Wrist Strap, Carry Bag, Lint-Free Cloth, USB-C to USB-C Cable, Quick Start Guide, Warranty Card
Optional Bluetooth Remote Control, Quick Charging Adapter, USB-A to USB-C Cable
View full details
