Vortex
Spitfire™ AR Prism Scope
Spitfire™ AR Prism Scope
LIFETIME WARRANTY.
If you ever have a problem, no matter the cause we promise to take care of you. Learn More »

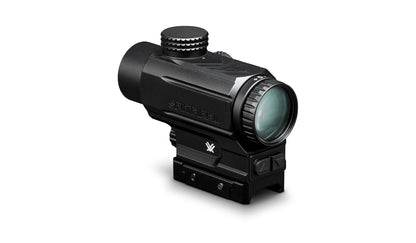

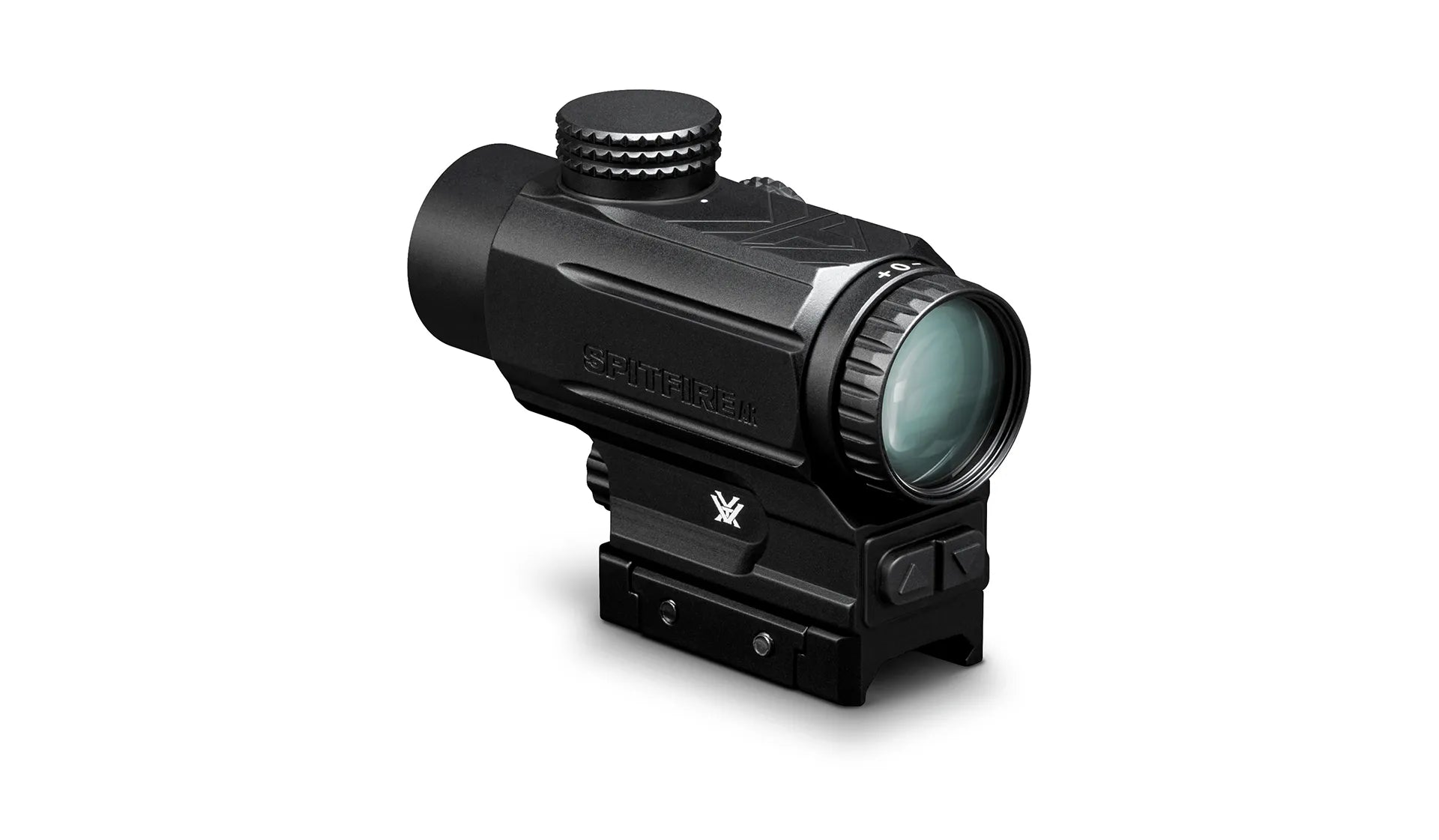

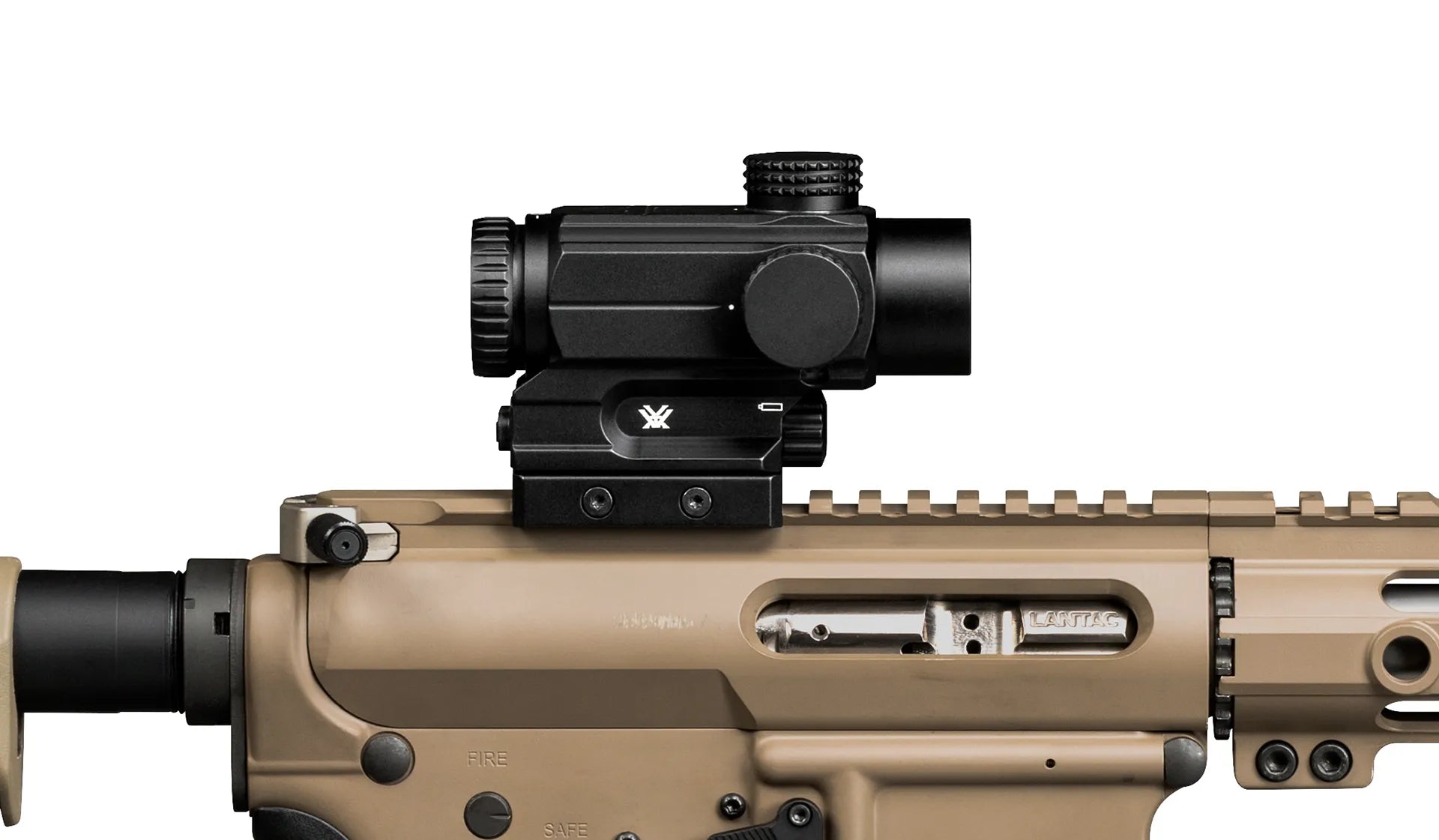

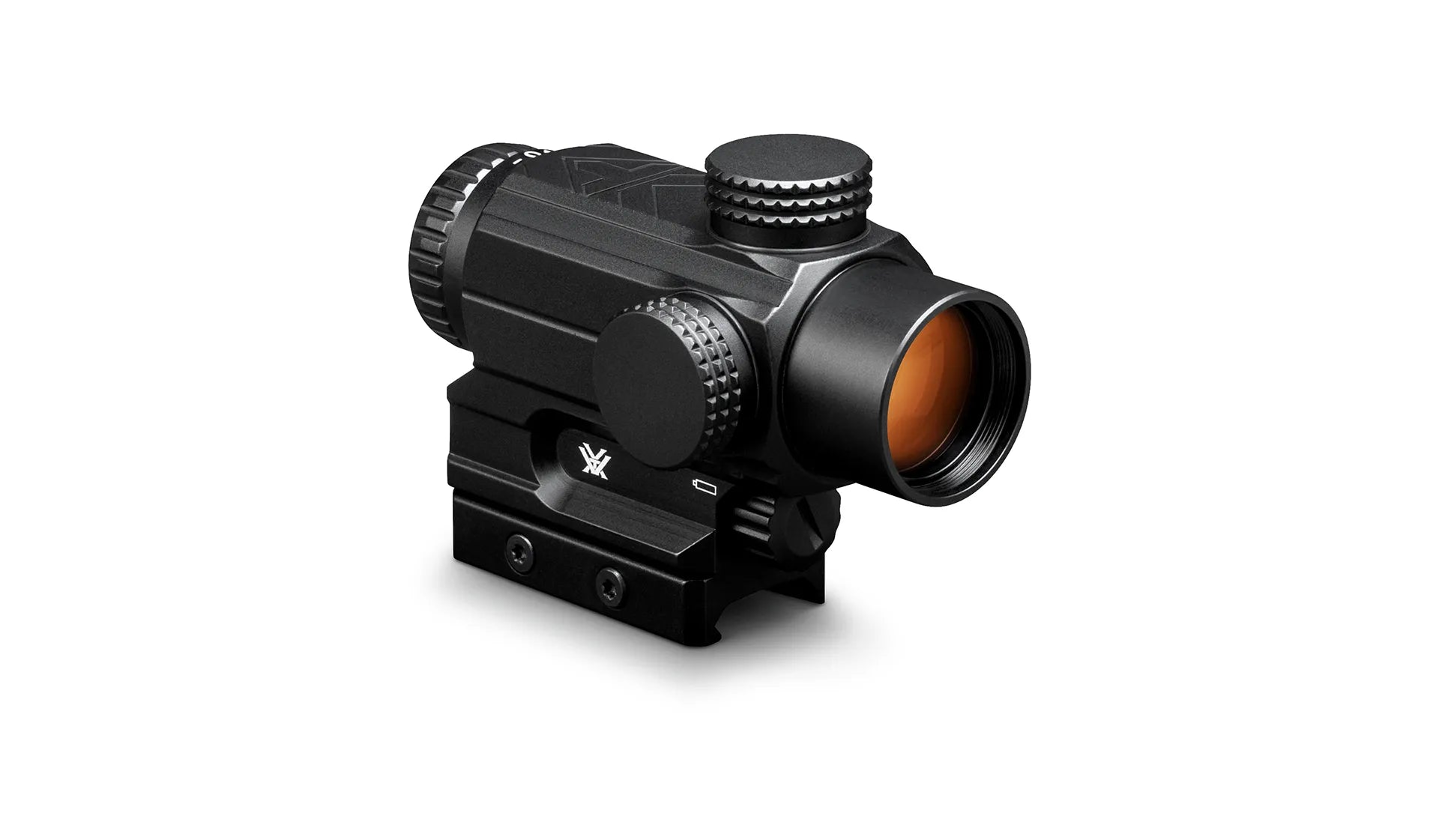

When fast target acquisition in tight spaces is mission-critical, the Spitfire™ AR delivers with precision and competitive speed. Designed for close-quarters engagements—with a prism design preferred by shooters with astigmatism—it offers 1x magnification and an etched reticle for rapid, accurate shots…with or without a battery. Compact, lightweight, and built to thrive in high-pressure shooting environments, the Spitfire® AR keeps you focused on your next move without slowing you down.
Battery Life: Up to 250 hours on highest setting. Up to 3,000 hours on lowest setting.
Prism Scopes are not compatible with the Micro6x, Micro3X or VMX-3T Magnifier.
Spitfire AR Prism Dimensions (in inches)
| Dot Color | Bright Red/Bright Green |
|---|---|
| Battery Type | AAA |
| Magnification | 1x |
| Objective Lens Diameter | 25 mm |
| Reticle | DRT (MOA) |
| Eye Relief | 3.8" |
| Field of View | 79.0' @ 100 yds |
| Mount Type | Lower 1/3 Co-Witness |
| Adjustment Graduation | 1/2 MOA |
| Max Elevation Adjustment | 120 MOA |
| Max Windage Adjustment | 120 MOA |
| Parallax Setting | Parallax Free |
| Length | 4.5" |
| Weight | 11.2 oz. |
| Red/Green Illuminated Reticle | Provides precise aiming under low-light conditions. |
|---|---|
| Fully Multi-Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
| Nitrogen Gas Purged | Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. |
| 14-Hour Auto-Shutoff | Automatically shuts off after 14 hours of inactivity to save battery life. |
| Low-Glare Matte Black Anodized | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. |
| Night-Vision Compatibility | The lowest 2 settings are night-vision compatible. |
| 10 Daylight Bright Brightness Settings | Daylight bright, illuminated reticle aids in faster center-point acquisition in bright daylight conditions. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Fogproof | Designed to withstand a wide range of temperatures. |
| Shockproof | Designed to withstand the highest levels of recoil and impact. |

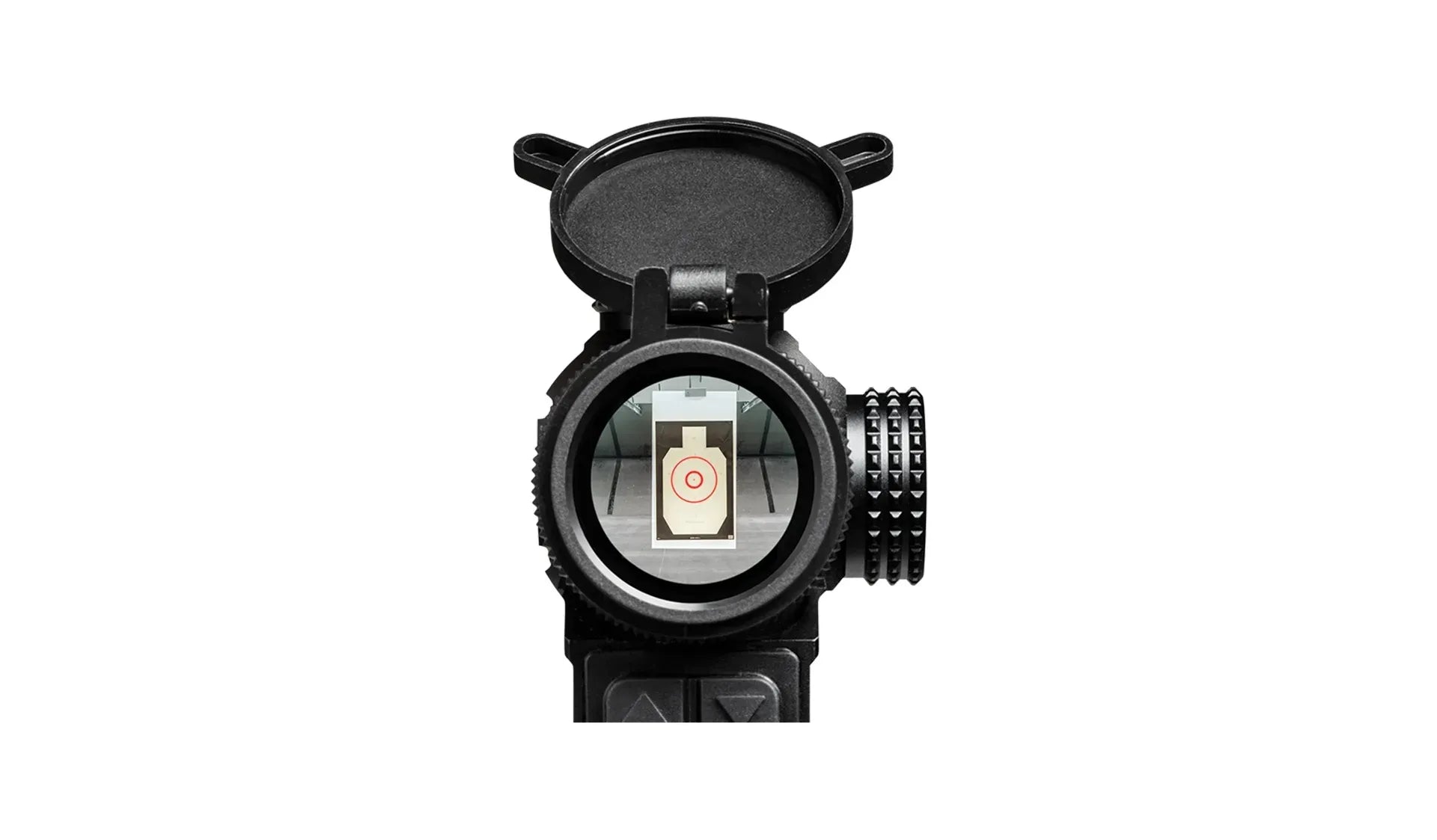

The DRT (Dual Ring Tactical) reticle is designed for rapid shooting at close distances. The dual ring design pulls the eye into instant alignment with the reticle center and target. Etched directly on the prism to assure consistent point-of-aim at all times with selectable red/green illumination of five intensity levels to match specific conditions.

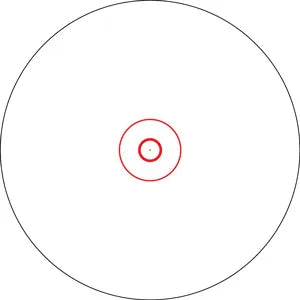

Subtension detail for the Spitfire 1x prism scope with DRT MOA reticle.
Included in the Box
- Torx® T-10 Wrench
- 5.56 BDC Turret Cap
- AAA Battery
- Flip Caps
