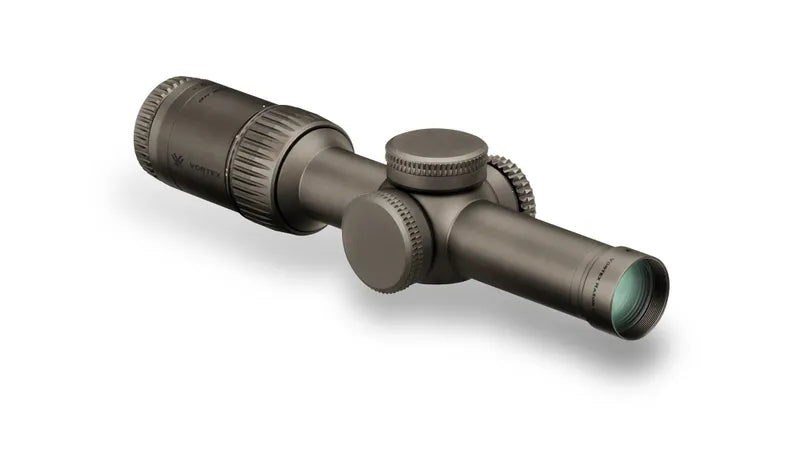

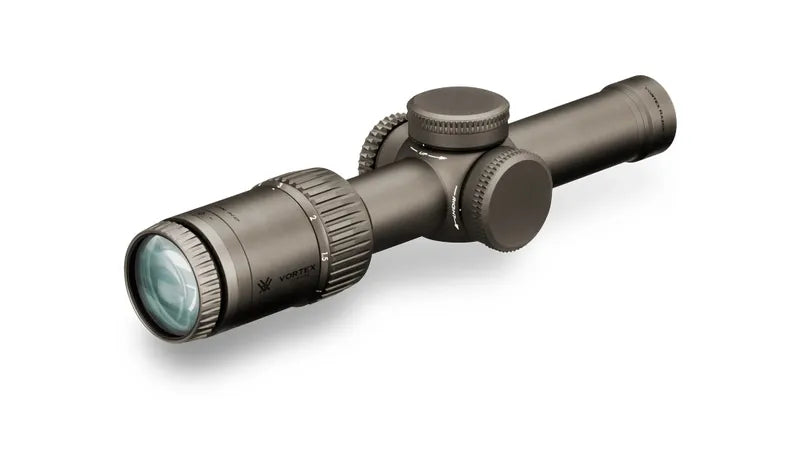

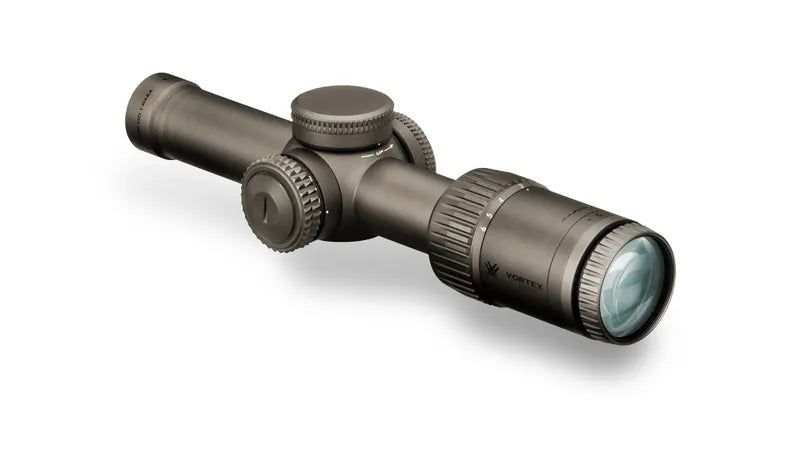

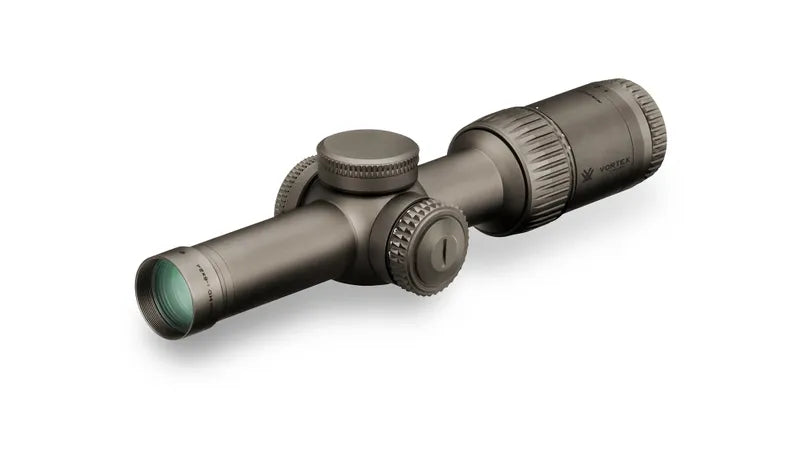

Razor® HD Gen II-E 1-6x24 JM-1 BDC Reticle | 30mm Tube

Razor^® HD Gen II-E delivers enhanced performance in a lightweight, streamlined package for MIL/LE professionals and competitive shooters. Top-tier precision. Faster handling. Designed for those who demand superior optical clarity and mobility in high-speed, high-pressure engagements. Ready to dominate close-quarters and mid-range scenarios, the Razor^® HD Gen II-E is built for the highest-level of performance—without compromise.

Magnification	1-6x
Objective Lens Diameter	24 mm
Focal Plane	Second Focal Plane
Reticle	JM-1 BDC
Eye Relief	4.0"
Field of View	115.2' - 20.5' @ 100 yds
Turret Style	Capped
Tube Size	30mm
Adjustment Graduation	1/2 MOA
Travel Per Rotation	50 MOA
Max Elevation Adjustment	150 MOA
Max Windage Adjustment	150 MOA
Parallax Setting	100 yds.
Length	10.1"
Weight	21.5 oz



Feature Tech

Class Leading HD Optical System

Stunning resolution and class-leading field of view combine to create our most advanced optical system.

XR™ Plus Lens Coatings

Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.

ArmorTek^®

Ultra-hard exterior lens coatings defend against scratches, oil, and dirt.

Friction Reduction System

Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with the ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability. US Patent 7,958,665.

Plasma Tech

Cutting edge coating application process provides unparalleled coating durability and performance.

Fogproof

Designed to withstand a wide range of temperatures.

Fully Multi-Coated Lenses

Anti-reflective coatings on all air-to-glass surfaces provide increases light transmission for greater clarity and low-light performance.

APO (Apochromatic) System

Index-matched lenses correct color across the entire visual spectrum.

Erector Tube System

Precision-machined from aircraft-grade aluminum with anti-galling properties for a lighter weight, stronger, more durable tube. Stainless steel offset coil spring erector biasing system withstands higher stresses, allowing more internal elevation and windage travel with better freedom of movement for the ultimate turret precision.

Optically Indexed Lenses

Optimize image sharpness and brightness from edge to edge.

Waterproof

Designed to withstand harsh weather conditions.

Shockproof

Designed to withstand the highest levels of recoil and impact.

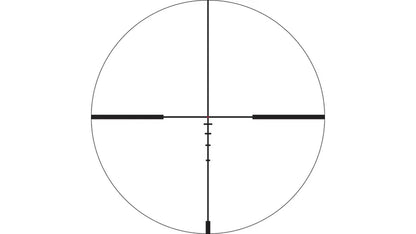

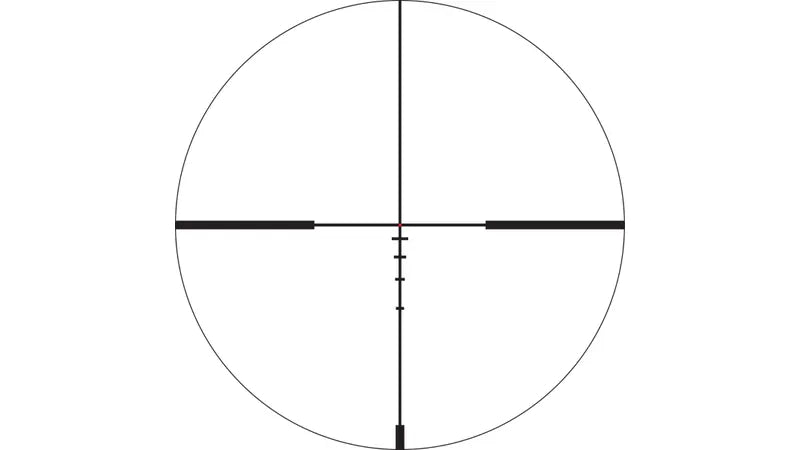

Reticle

JM-1 BDC

Simple, intuitive and fast. The Vortex-exclusive JM-1 BDC reticle with illuminated center dot (designed with input from world-renowned competitive shooter, instructor and gunsmith Jerry Miculek) facilitates rapid, accurate, shooting at distances from point blank to 600 yards.
