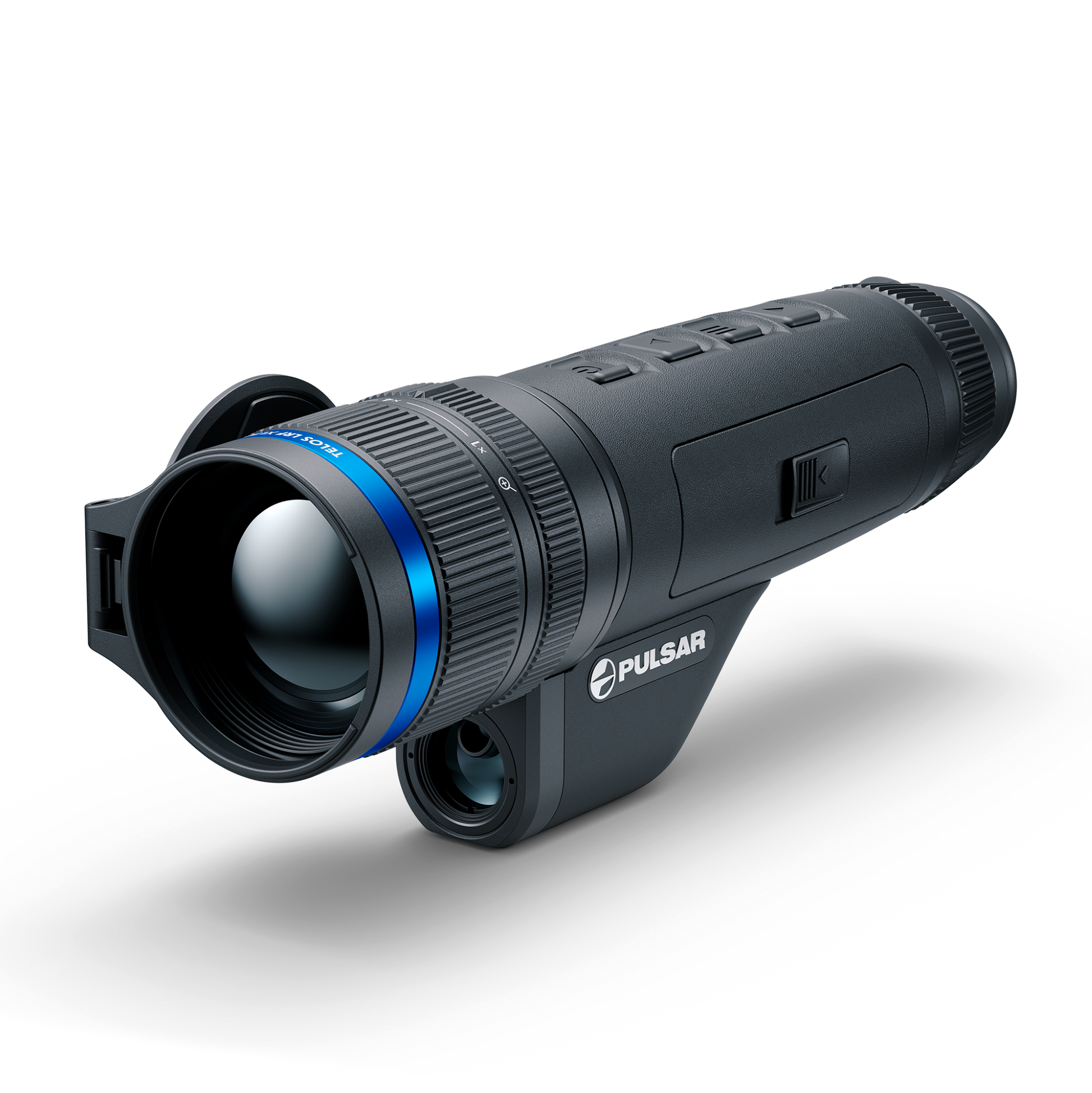

PULSAR TELOS LRF XL50 THERMAL MONOCULAR

Microbolometer

Type

uncooled

Resolution, Pixels

1024x768

Pixel Pitch, µm

12

< 40

Frame Rate, Hz

50

Optical Characteristics

Magnification, x

2.5

Smooth Digital Zoom, x

2.5-20

Digital Zoom, x

x1 - x8

Lens Focus, mm

50

Relative Aperture, D/f'

1.0

Minimum Focus Distance, m/y

5 / 5.5

Exit Pupil Diameter, mm/inch

4 / 0.16

Angular Field of View (Horizontal x Vertical), degree

14 x 10.5

Linear Field of View, m at 100 m

24.6

Eyepiece Focus Range, Dioptre

+4 / -5

Detection Distance for Deer-Sized Objects, m/y

2300 / 2515

Display

Type

AMOLED

Resolution, Pixels

1024x768

Operational Characteristics

Power Supply, V

3 - 4.2

Battery Type/Capacity/Nominal Output Voltage

LPS7i Li-ion Battery Pack / 6400 mAh / DC 3.7 V

External Power Supply

5 V, 9 V (USB Type-C)

Battery Run Time at t=22°C, hours*

8.5

Degree of Protection, IP Code (IEC60529)

IPX7

Operating Temperature Range, °C / °F

-25 … +40 / -13 – +104

Dimensions, mm/inch

243x72x62

Weight (with battery), kg/oz

0.67 / 23.6

Video Recorder

Photo/Video Resolution, Pixels

1024x768

Video/Photo Format

.mp4 / .jpg

Built-in Memory

64 GB

Wi-Fi Channel**

Frequency

2.4/5 GHz

Standard

IEEE 802.11 b/g/n/ac
