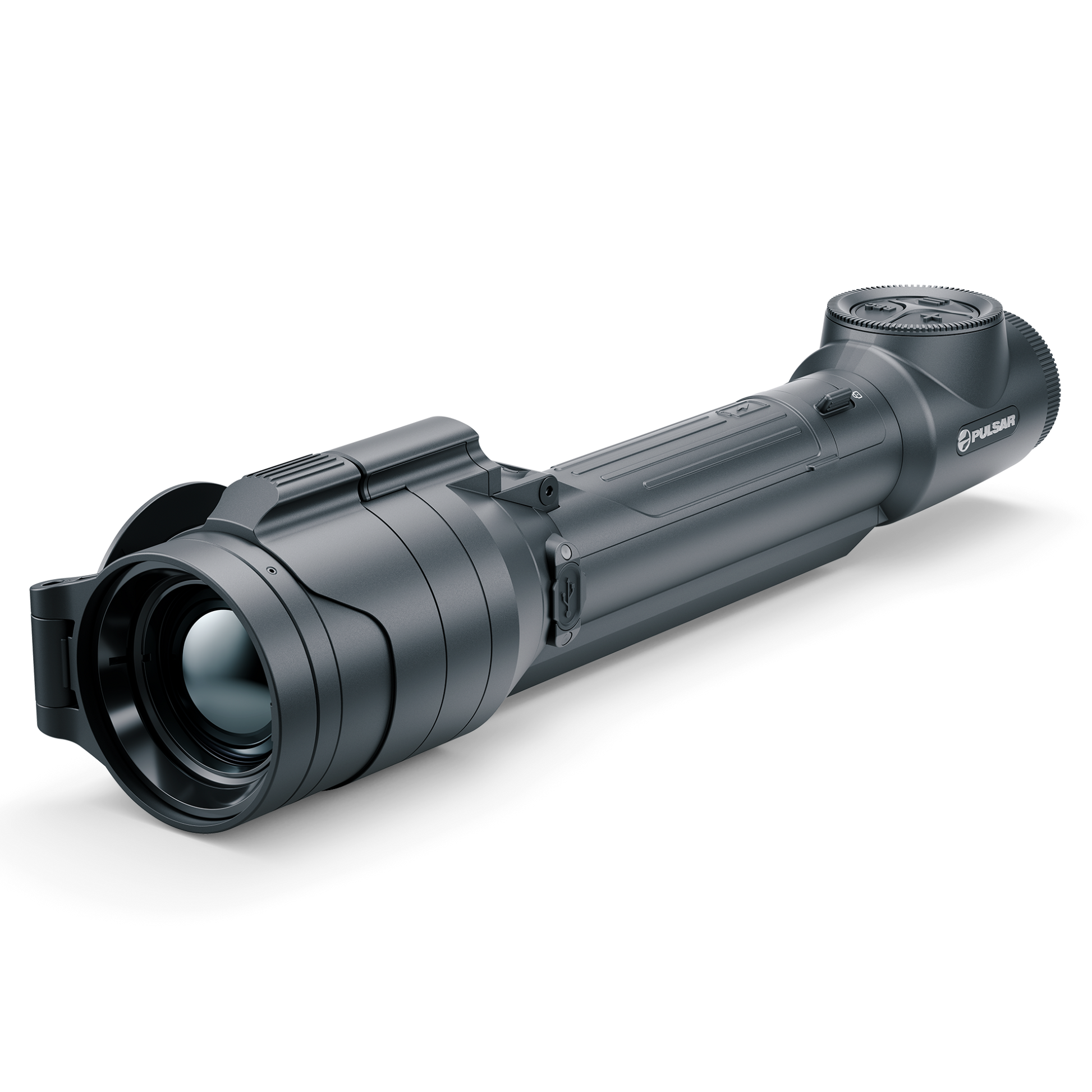

PULSAR TALION XG35 U MOUNT THERMAL SCOPE

Microbolometer

Type

uncooled

Resolution, pixels

640x480

Pixel Pitch, µm

12

NETD, mK

< 40

Frame refresh rate, Hz

50

Optical Specifications

Lens, mm

F35 F/1.0

Magnification, x

2-16

Eye relief, mm/inch

50/1.96

Field of view (H), °/m@100

12.5 / 21.9

Diopter adjustment, D

-3/+4

Detection distance (Object of "deer" type), m/y

1750 / 1914

Aiming Reticle

Click value, mm@100 m – when magnifying, x

21 mm – 2х

10.5 mm – 4х

5.25 mm – 8х

2.6 mm – 16х

Click range (H/V), mm@100 m

4200/4200

Display

Type

AMOLED

Resolution, pixels

1024х768

Operating Features

Power Supply, V

3–4.2

Battery type / Capacity / Rated Output Voltage

Li-Ion Battery Pack АPS 5T / 4900 mAh / DC 3.7 V (removable)

External Power Supply

5 V, 9 V (USB Type-C Power Delivery)

Battery Pack operating time at temp. = 22 °C, hrs**

7

Max. recoil power on rifled weapon, Joules

6000

Max. recoil power on smoothbore weapon, caliber

12

Compatible Pulsar mounts

Weaver U Mount

Weaver USQD Mount

Weaver LQD Mount

Degree of protection IP code (IEC60529)

IPX7

Operating temperature, °С / °F

-25 – +50 / -13 – +122

Dimensions with an eyecup, mm/inch

330x57x67 / 12.99x2.24x2.64

Weight (with removable battery, without mount), kg/oz

0.82 / 28.92

Video Recorder

Photo / video resolution, pixels

1024x768

Video / photo format

.mp4 / .jpg

Built-in memory

16 GB

Wi-Fi Channel***

Frequency

2.4/5 GHz

Standard

IEEE 802.11 b/g/n/ac
