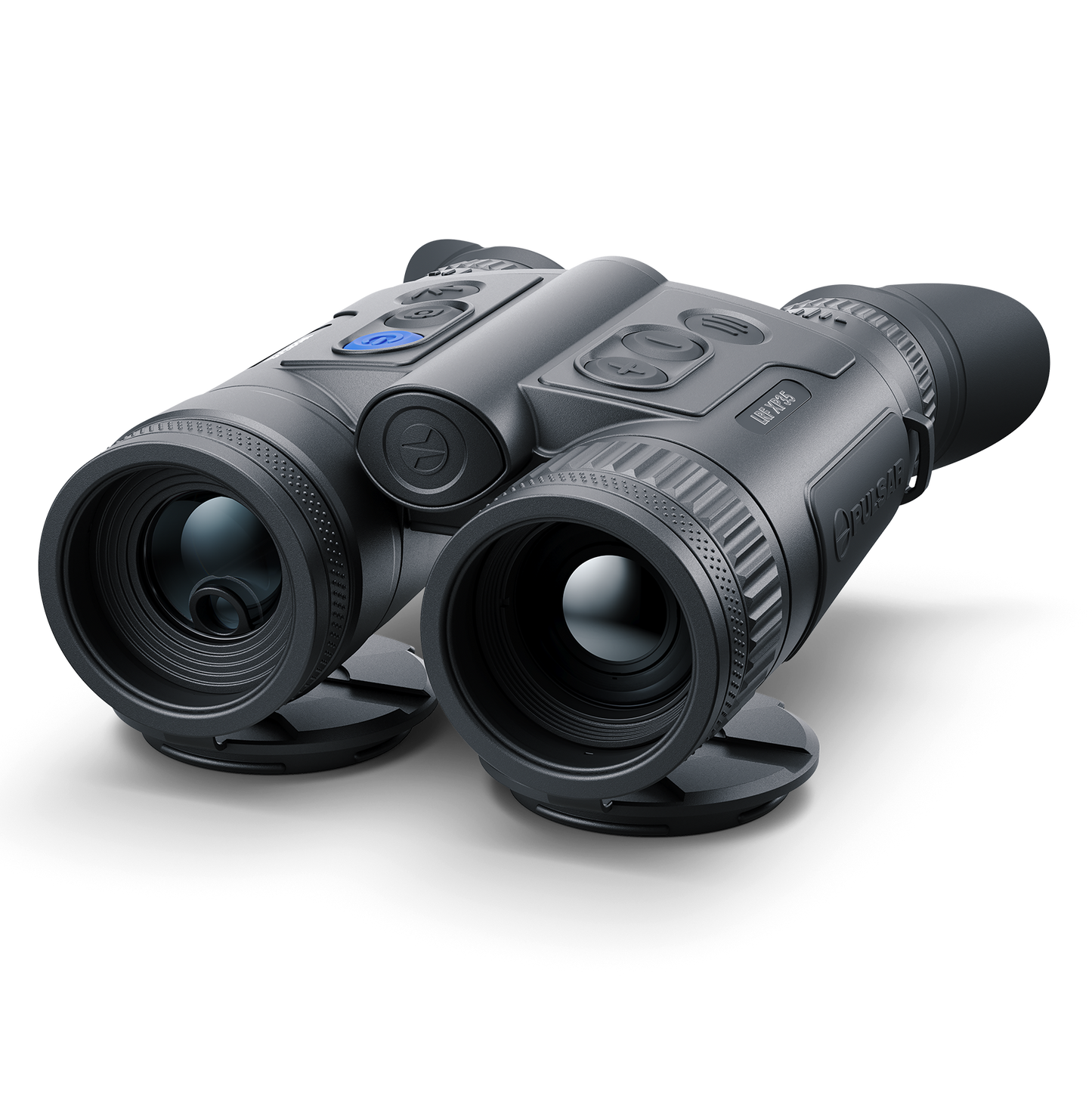

PULSAR MERGER LRF XP35 THERMAL BINOCULAR

Microbolometer

Type

uncooled

Resolution, pixels

640x480

Pixel Pitch, µm

17

NETD, mK

< 25

Frame rate, Hz

50

Optical Characteristics

Lens, mm

F50 F/1.0

Continuous digital zoom, x

2.5-20

Digital zoom

2x/4x/8x

Minimum Focus Distance, m/y

5 / 5.47

Eye relief, mm/inch

15 / 0.59

Exit pupil diameter, mm

3.5

Field of view (HxV), degrees / m@100m

12.4 / 21.8

Diopter adjustment, D

-5/+4

Interpupillary distance adjustment, mm

63-74

Range of detection (deer type object), m/y

1800 / 1970

Display

Type

AMOLED

Resolution, pixels

1024х768

Operational Characteristics

Power supply, V

3.7

Battery type / Capacity / Output voltage

Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable)

Li-Ion Battery Pack / 4000 mAh / DC 3.7 V (built-in)

External power supply

5V

Operating time on Battery Pack (at t=22°C), h*

8.5

Degree of protection, IP code (IEC60529)

IPХ7

Operating temperature range, °С /° F

-25 ... +50 / -13 ... 122

Dimensions, mm / inch

196х143х76 / 7.72x5.59x2.99

Weight (with battery), kg / oz

0.95 / 33.5

Video Recorder

Video / photo resolution, pixel

1024х768

Video / photo format

.mp4 / .jpg

Built-in memory

16 Gb

Wi-Fi Channel**

Frequency

2.4/5 GHz

Standard

IEEE 802.11 b/g/n/ac

Characteristics of the Rangefinder

Wavelength, nm

905

Max. measuring range***, m/y

1000 / 1094

Measurement accuracy, m

+/-1
