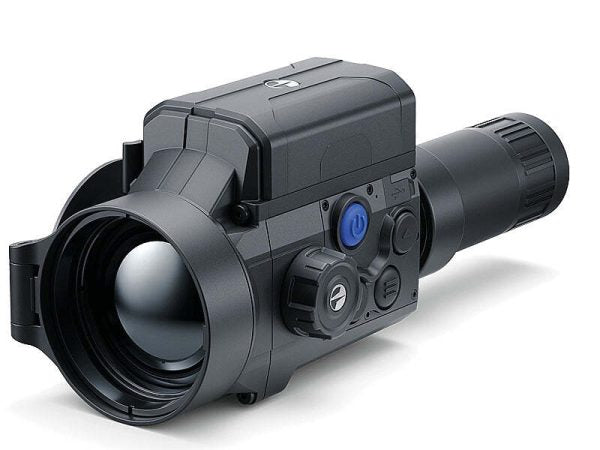

PULSAR KRYPTON 2 XG50 THERMAL CLIP-ON

Microbolometer

Type

Uncooled

Resolution, Pixels

640x480

Pixel Pitch, µm

12

< 40

Frame Rate, Hz

50

Optical Characteristics

Monocular magnification, x

3

Recommended Daylight Optics Magnification, x

2-6

Lens

F50/1.0

Field-of-view (Horizontal), deg/m per 100 m

8.8/15.4

Detection Range (animal height 1.7 m), m/y

2300/2515

Minimum Focusing Distance, m/y

5/5.5

Display

Type

AMOLED

Resolution, Pixels

1920x1080

Operational Characteristics

Power Supply, V

3-4.2

Battery type/ Capacity/ Rated Output Voltage

Li-Ion Battery Pack IPS 7 / 6400 mAh / DC 3.7 V

External Power Supply

5 V (USB Type-C)

Max. Battery Pack Life (at t = 22 °C), Hour*

11

Degree of protection IP code (IEC60529)

IPX7

Compatible Pulsar adapters

PSP-42, PSP-50, PSP-56, PSP-30B, PSP-42B, PSP-50B, PSP-56B

Operating temperature, °C / °F

-25 – +50 / -13 – +122

Overall Dimensions, mm/inch

217x78x84 / 8.5x3.1x3.3

Weight (with Battery), kg/oz

0.58 / 20.5

Video Recorder

Photo/Video Resolution, Pixels

1024х768

Video/Photo Format

.mp4/.jpg

Built-in Memory

eMMC 16 GB

Wi-Fi Channel**

Frequency

2.4/5 GHz

Standard

IEEE 802.11 b/g/n/ac (WPA)
