Why choose genuine Dyneema® SK-75 Syntethic Rope over any other brand?
- Manufactured by DSM in the Netherlands, it is the most reliable, safest and longest-lasting rope available
-
It's "high-modulus" synthetic fibres are scientifically engineered to overcome the 4 major challenges of winch rope; Abrasion, Bending Fatigue, Compression, Creep Fatigue:
- Abrasion: Running through a fairlead causes abrasion and degrades the fibres. Over a period of time, the fibres will eventually break. A rope made with Dyneema® SK-75 fibres has over 4X longer abrasion lifetime compared to a rope made with generic HMPE and far more than polyester
- Bending fatigue happens each time a rope is flexed under tension. The fibres of a rope will stress when running through a fairlead. With Dyneema rope, bending causes less damage and the number of cycles before failure is far greater than steel or any other synthetic fibre.
- Compression Fatigue happens when a rope becomes slack and the fibres actually compress. The molecular properties engineered into Dyneema® SK-75 prevent compression fatigue. Ropes with Dyneema are not affected by compression fatigue.
- Creep Fatigue - all synthetic ropes will elongate under load and over time at higher temperatures. When combined with abrasion, creep fatigue leads to failure and breakage. Dyneema® SK-75 has 2-4X longer creep lifetime than generic HMPE.
- Dyneema is the worlds strongest fibre and the most trusted and safest brand for towing ropes. "Feel secure only with Dyneema".
SPECIFICATIONS:
| Rated Line Pull: | 9500LBS (4307KG) |
| Motor: | 7 HP Series Wound (12V), High Speed, IP68 Rated |
| Clutch (free spooling): | Sliding Ring Gear |
| Colour & Finish: | Black, Powder Coated |
| Remote Control: | Handheld 3.8M Length + Wireless Function |
| Battery Leads: | 2 x 1.8M Heavy-Duty Leads |
| Gear Train: | 3-Stage Planetary |
| Gear Reduction Ratio: | 150:1 |
| Braking Action: | Automatic (In The Drum) |
| Drum Size: | Diameter 63.5mm (2.5"), Length 228mm (9") |
| Synthetic Rope: | Dyneema® SK-75, 9.5mm x 26M, Dark Grey |
| Hook: | 8/10" Black Powder Coated |
| Fairlead: | Hawse Black Aluminium |
| Overall Dimensions: | 540 x 160 x 218mm (21.3x6.3x6.6") |
| Mounting Bolt Pattern: | 254 x 114.3mm (10x4.5") |
| Battery Leads: | 1.8m long |
| Net Weight: | 27KG |
| Gross Weight: | 28.5KG (Includes Packaging) |
| Vehicle Battery Requirement: | 650CCA Minimum Recommended For Winching |
| Warranty: | 4 Years |

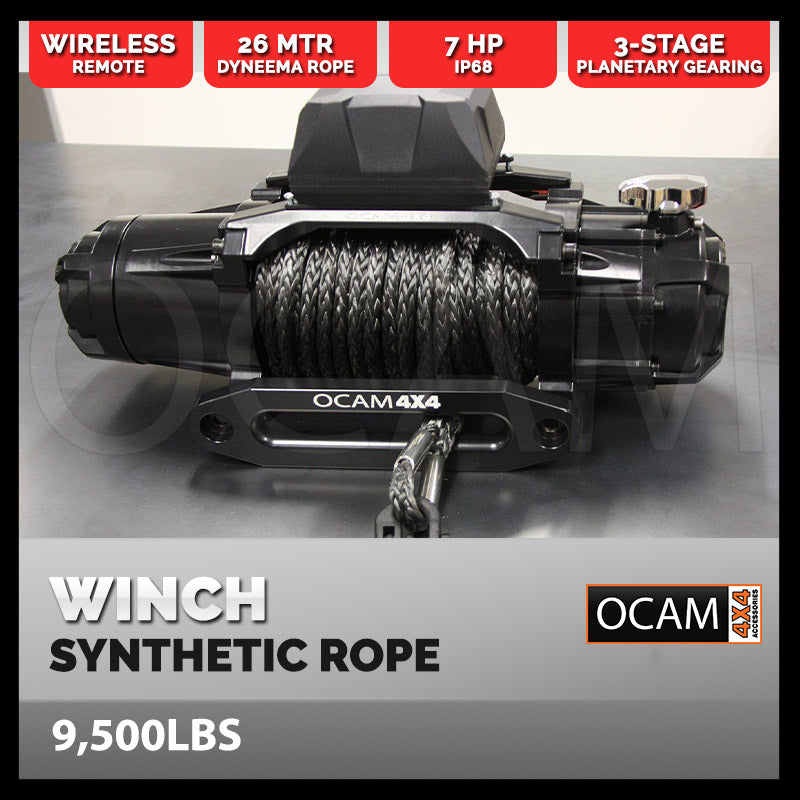

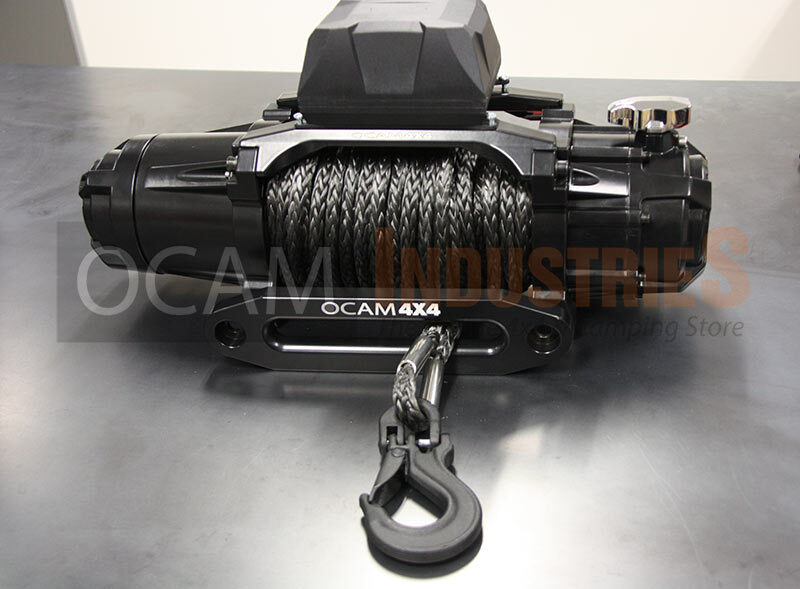

- 1 x 9500LBS Electric Winch With Dyneema® SK-75 Rope
- 1 x Control Box + Bracket
- 1 x Wired Handheld Remote
- 1 x Wireless Remote with LED
- 1 Set Accessories
- 1 x User Manual
