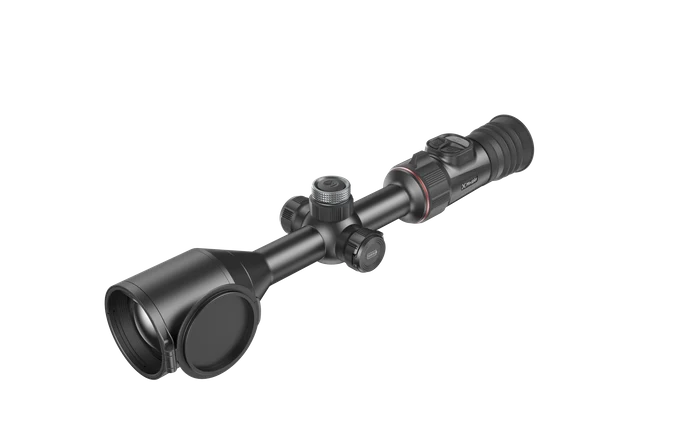

Nocpix ACE 2 S60R Thermal Scope – 1280 Sensor Flagship with LRF 2.0 and Ballistics

Hunters chasing maximum thermal detail will want the Nocpix ACE 2 S60R at the top of the new ACE 2 line.

Using a self-developed 1280 × 1024, 12 µm sensor with NETD ≤12 mK, it resolves finer heat differences than the 640 models.

Next-gen R+ 2.0 AI enhancement pairs with an F60/1.0 aperture for cleaner images when the night is humid or cluttered.

This flagship keeps LRF 2.0 and full ballistic calculation so ranging and hold work stay as fast as the lower ACE 2 models.

Trusted detection out to about 3100 m (1.7 × 0.5 m target, Pn = 99%) suits long Australian lanes and open farm edges.

High-resolution AMOLED at 2560 × 2560 makes the extra sensor detail useful at the eyepiece, not just on a brochure.

Every focus tweak stays natural on the central wheel, so you can sharpen without lifting off the stock.

Night runtime is still practical at up to about 7 hours at 22°C on the built-in plus replaceable 18650 pack.

Inside Dual Clarity Mode, Motion keeps chase scenes smooth while Still pulls the fine branching and body cues you need.

Giving up to 28× maximum magnification with 2–4× optical base, the S60R covers wide scans and tight confirmation alike.

Hunt The Night recommends the S60R when you want Gen 3 1280 imaging with the same LRF 2.0 and app workflow as H35R and H50R.

That means 5G Wi-Fi transfers around 20 MB/s, 64 GB recording, recoil-activated video, IP67 weather sealing and Class 1 LRF to 1200 m.

Integrated LRF 2.0 and Ballistic System

LRF 2.0 delivers distance data with 11% sharper optics and 57% faster ranging in tough conditions, out to 1200 m (±1 m). The onboard ballistic system works out the hold using distance, angle, wind drift and environmental factors so you can take a confident shot when it counts.

1280 × 1024 Gen 3 Sensor, NETD ≤12 mK

The S60R is powered by Nocpix’s self-developed 1280 × 1024 thermal sensor with NETD ≤12 mK. Combined with an F1.0 ultra-large aperture and the upgraded R+ 2.0 AI algorithm, it delivers sharper detail, cleaner images and stronger clarity in challenging conditions.

60 mm F1.0 Objective

The F60/1.0 objective opens a wide 14.7° × 11.7° field of view (25.6 × 20.5 m at 100 m), with 2–4× optical magnification and up to 28× maximum magnification for high-detail work at range.

Detection range is up to 3100 m (1.7 × 0.5 m target, Pn = 99%). Frame rate is selectable at 30/60 Hz.

Ocular Zoom 2.0

60 mm eye relief and a 10 mm exit pupil give up to 25% longer eye relief than the previous generation. Lossless hybrid zoom keeps reticle accuracy steady through the zoom range for clearer, more comfortable viewing at any magnification.

Magnesium Body and Low-Temp Battery

The high-strength magnesium alloy chassis is about 25% lighter than the previous generation. Runtime is up to 7 hours at 22°C, with solid cold-weather performance from the next-gen battery system. External Type-C power keeps you going when you need a top-up.

Intelligent Tracking and Central Focus

Integrated laser ranging and an electronic compass give instant target coordinates from a single measurement. The centrally placed focus wheel lets you dial focus without breaking your aiming position, even in low light.

Dual Clarity Mode and 5G Wi-Fi

Motion Mode keeps imaging smooth on moving targets. Still Mode sharpens fine detail for identification. One-tap app pairing remembers your device, and upgraded 5G Wi-Fi pushes transfers up to about 20 MB/s for video downloads and firmware updates. Photo and video recording, recoil-activated video, gallery playback and 64 GB of onboard memory are all built in.

Specifications
