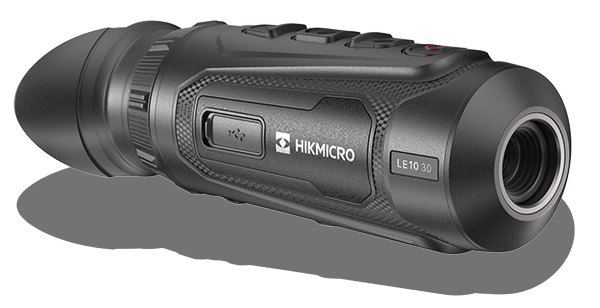

LYNX LE10 3.0 LE10

HIKMICRO LYNX LE10 3.0 Specifications

• Image Sensor: VOx Uncooled Focal Plane Arrays

• Max. Resolution: 256 × 192

• Frame Rate: 50 Hz

• Pixel Interval: 12 μm

• Response Waveband: 8 μm to 14 μm

• NETD: Less than 20 mK (@25°C), F#=1.0

• Lens (Focal Length): 9.7 mm, F1.0

• Focus Mode: Focus Free

• Min. Focusing Distance: 3.5 m

• Magnification: 1.4× – 11.2× (8× Digital Zoom)

• Field of View (H × V): 18.0° × 13.6° / 31.7 m × 23.8 m @ 100 m

• Detection Range: 500 m

• Display: 0.39 inch, OLED/AMOLED, 1024 × 768

• Contrast Adjustment: Yes

• Brightness Adjustment: Yes

• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome

• Tone Adjustment: Cold, Warm

• Zoom Pro: Yes

• HSIS (HIKMICRO Shutterless Image System): Yes

• Image Pro 3.0: Yes

• Battery Type: Replaceable and rechargeable 18650 battery

• Runtime: ~4.5 hours (Continuous running)

• Protection Level: IP67

• Weight: ~291 g (with battery)
