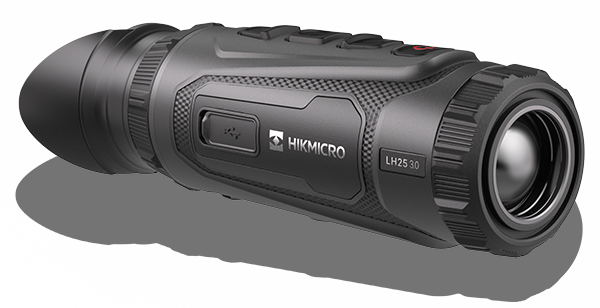

LYNX 3.0 LH25

Stock On Hand May Vary

LYNX LH25 3.0 25mm Thermal Monocular

HIKMICRO LYNX LH25 3.0 Specifications

• Image Sensor: VOx Uncooled Focal Plane Arrays

• Max. Resolution: 384 × 288

• Frame Rate: 50 Hz

• Pixel Interval: 12 μm

• Response Waveband: 8 μm to 14 μm

• NETD: Less than 15 mK (@25°C), F#=1.0

• Lens (Focal Length): 25 mm, F1.0

• Focus Mode: Focus Ring (Manual Focus)

• Min. Focusing Distance: 3.0 m

• Magnification: 2.5× – 20.0× (8× Digital Zoom)

• Field of View (H × V): 10.5° × 6.4° / 18.4 m × 11.2 m @ 100 m

• Detection Range: 1200 m

• Display: 0.49 inch, AMOLED, 1920 × 1080

• Contrast Adjustment: Yes

• Brightness Adjustment: Yes

• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome

• Tone Adjustment: Cold, Warm

• Zoom Pro: Yes

• HSIS (HIKMICRO Shutterless Image System): Yes

• Image Pro 3.0: Yes

• Battery Type: Replaceable and rechargeable 18650 battery

• Runtime: ~5 hours (@25°C) / 4.5 hours (@-20°C)

• Protection Level: IP67

• Weight: 328.5 g (with battery)
