LYNX 3.0 LH15

Stock On Hand May Vary

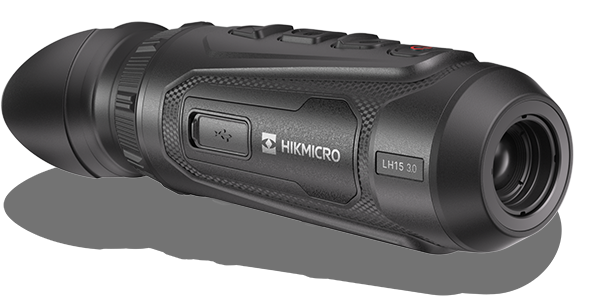

LYNX LH15 3.0 15mm Thermal Monocular

HIKMICRO LYNX LH15 3.0 Specifications

• Image Sensor: VOx Uncooled Focal Plane Arrays

• Max. Resolution: 320 × 240

• Frame Rate: 50 Hz

• Pixel Interval: 12 μm

• Response Waveband: 8 μm to 14 μm

• NETD: Less than 18 mK (@25°C), F#=1.0

• Lens (Focal Length): 15 mm, F1.0

• Focus Mode: Focus Free

• Min. Focusing Distance: 7.0 m

• Magnification: 2.2× – 17.6× (8× Digital Zoom)

• Field of View (H × V): 11.7° × 8.8° / 20.5 m × 15.4 m @ 100 m

• Detection Range: 750 m

• Display: 0.39 inch, OLED/AMOLED, 1024 × 768

• Contrast Adjustment: Yes

• Brightness Adjustment: Yes

• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome

• Tone Adjustment: Cold, Warm

• Zoom Pro: Yes

• HSIS (HIKMICRO Shutterless Image System): Yes

• Image Pro 3.0: Yes

• Battery Type: Replaceable and rechargeable 18650 battery

• Runtime: ~5.5 hours (@25°C) / 5 hours (@-20°C)

• Protection Level: IP67

• Weight: 296.5 g (with battery)
