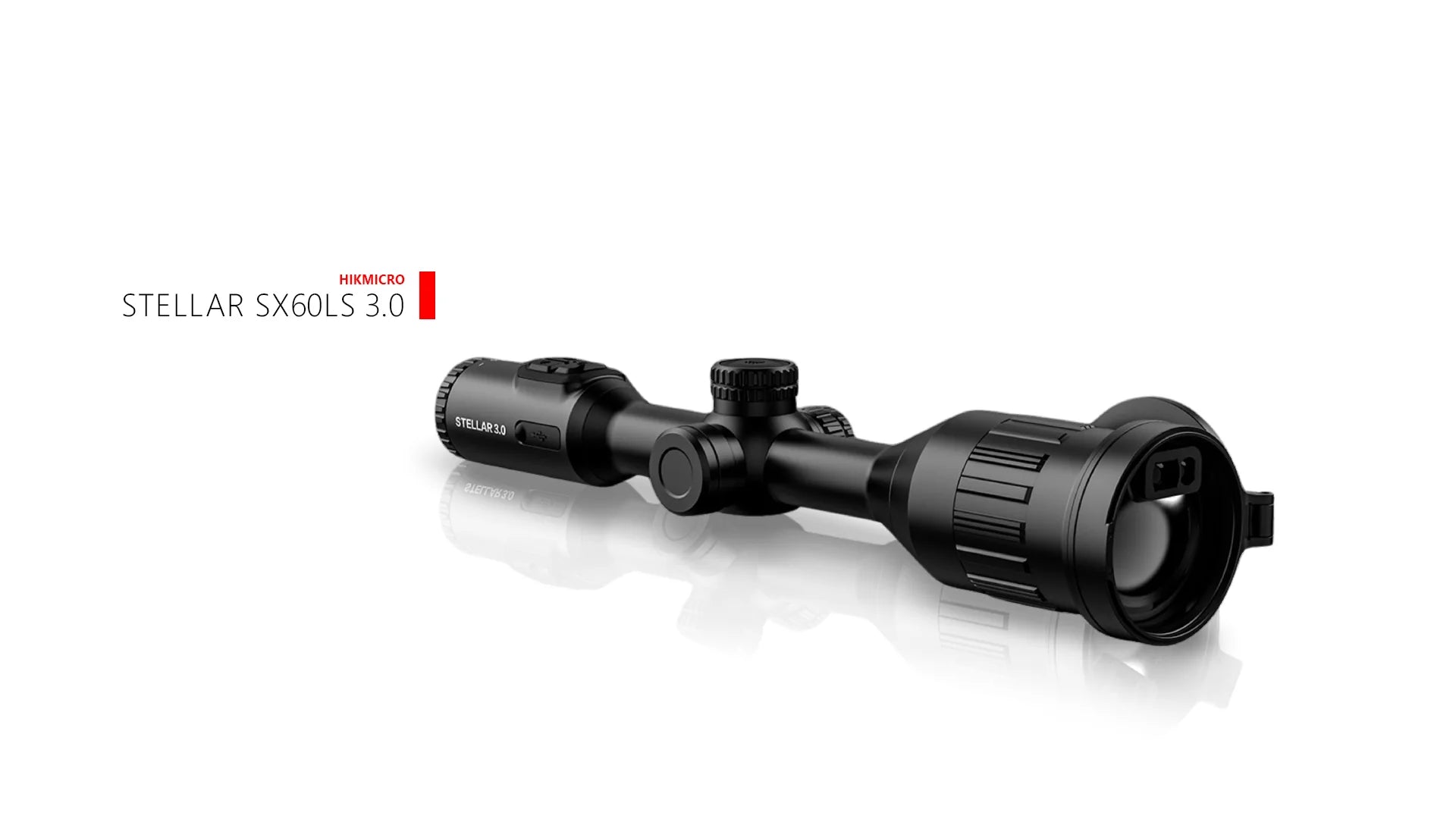

HIKMICRO STELLAR 3.0 SX60LS 50Hz Thermal Rifle Scope with LRF
HIKMICRO STELLAR 3.0 SX60LS 50Hz Thermal Rifle Scope with LRF
The HIKMICRO STELLAR SX60LS 3.0 delivers uncompromising thermal performance for serious hunters. Its 50Hz 1280×1024 thermal detector with exceptional sensitivity (NETD <15mK) renders crisp, fluid imagery in any weather or light—fog, rain, or complete darkness won't slow you down. The expansive 1.03" OLED display and advanced Image Pro 3.0 processing reveal fine details competitors miss. Integrated 1000m laser rangefinder and ballistic calculator eliminate guesswork, ensuring precise shot placement every time. Built for field and forest hunting where reliability and accuracy define success.
Key Features
● 1280×1024 resolution @12μm 50Hz thermal detector
● High sensitivity thermal module NETD ＜ 15 mK (@25°C, F# = 1.0)
● 60mm, F1.0 lens with detection range up to 3100m
● 2560 × 2560 resolution 1.03-inch OLED display
● Built-in lens laser rangefinder up to 1000m, with ballistic calculation
● Rechargeable internal batteries and external battery, 6.5h continuous operation
● High shock resistance up to 1000g/0.4ms
|
Thermal Module |
|
|
Image Sensor |
VOx Uncooled Focal Plane Arrays |
|
Max. Resolution |
1280×1024 |
|
Frame Rate |
50Hz |
|
Pixel Interval |
12 μm |
|
Response Waveband |
8 μm to 14 μm |
|
NETD |
Less than 15 mK (@25°C),F#=1.0 |
|
Lens (Focal Length) |
60mm, F1.0 |
|
Focus Mode |
Focus Ring |
|
Detection Range |
3100m |
|
Min. Focusing Distance |
6m |
|
Magnification |
2.5×-28.5× |
|
Field of View(H × V), Degrees / m @100m |
14.6°×11.7°/25.6m×20.5m |
|
Image Display |
|
|
Display |
2560x2560, 1.03 inch OLED |
|
FFC (Flat Field Correction) Mode |
Auto, Manual, External Correction |
|
Palettes |
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
|
Exit Pupil |
6mm |
|
Eye Relief |
45mm |
|
Diopter (Range) |
-4D to 4D |
|
Brightness Adjustment |
Yes |
|
Tone Adjustment |
Cold, Warm |
|
Contrast Adjustment |
Yes |
|
HSIS (HIKMICRO Shutterless Image System) |
No |
|
Zoom Pro |
No |
|
Image Pro 3.0 |
Yes |
|
Sync Pro |
Yes |
|
System |
|
|
Record Video |
On-board Video Recording |
|
Audio Recording |
Yes |
|
Capture Snapshot |
Yes |
|
Recoil-activation Recording |
Yes |
|
Storage |
Built-in EMMC (64 GB) |
|
PIP |
Yes |
|
Hotspot |
Yes |
|
Hot Track |
Yes |
|
Distance Measurement |
Yes |
|
Zeroing Profiles |
5 |
|
Freeze Zeroing |
Yes |
|
Max. Recoil |
1000g/0.4ms |
|
Standby Mode |
Yes |
|
Ballistic Calculation |
Yes |
|
Local Album |
Yes |
|
Power Supply |
|
|
Battery Type |
Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external) |
|
Battery Operating Time |
6.5 hours continuous running (@25°C, LRF on) |
|
Type-C Power Supply |
5 V DC/2 A, USB Type-C interface, Supports QC3.0 |
|
General |
|
|
Mounting |
Standard 30mm |
|
Dimension |
452.6mm x 94.3mm x78.9mm |
|
Weight |
1150g |
|
Working Temperature |
-30 °C to 55 °C (-22 °F to 131°F) |
|
Protection Level |
IP67 |
|
Center Height |
41mm |
|
Laser Rangefinder |
|
|
LRF Module in Lens |
Yes |
|
Wavelength |
905 nm |
|
Safety Class for Laser |
Class 1 |
|
Max. Measuring Range |
1000 m |
|
Measurement Accuracy |
±1 m |
|
Min. Measuring Range |
10 m |
