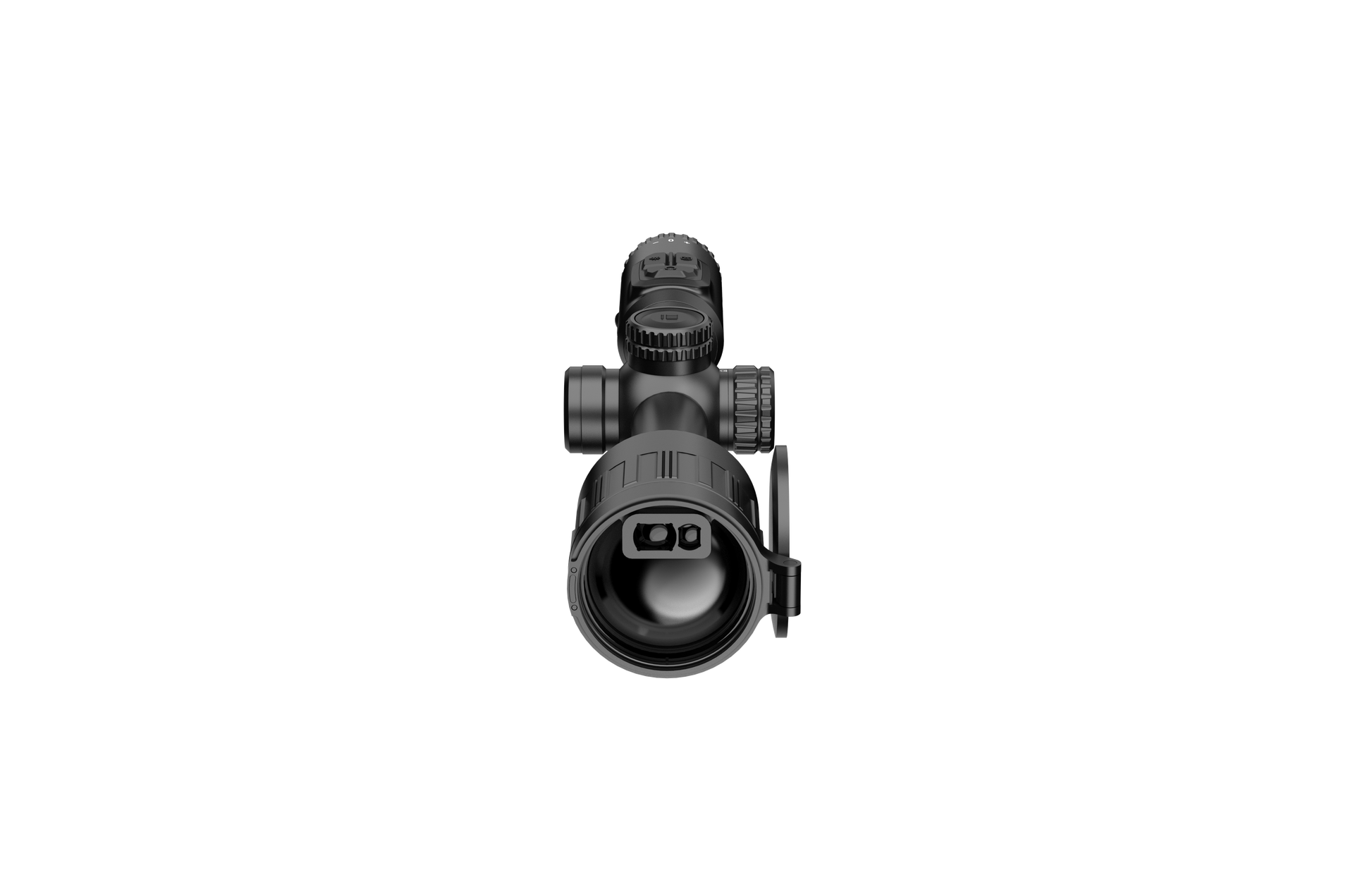

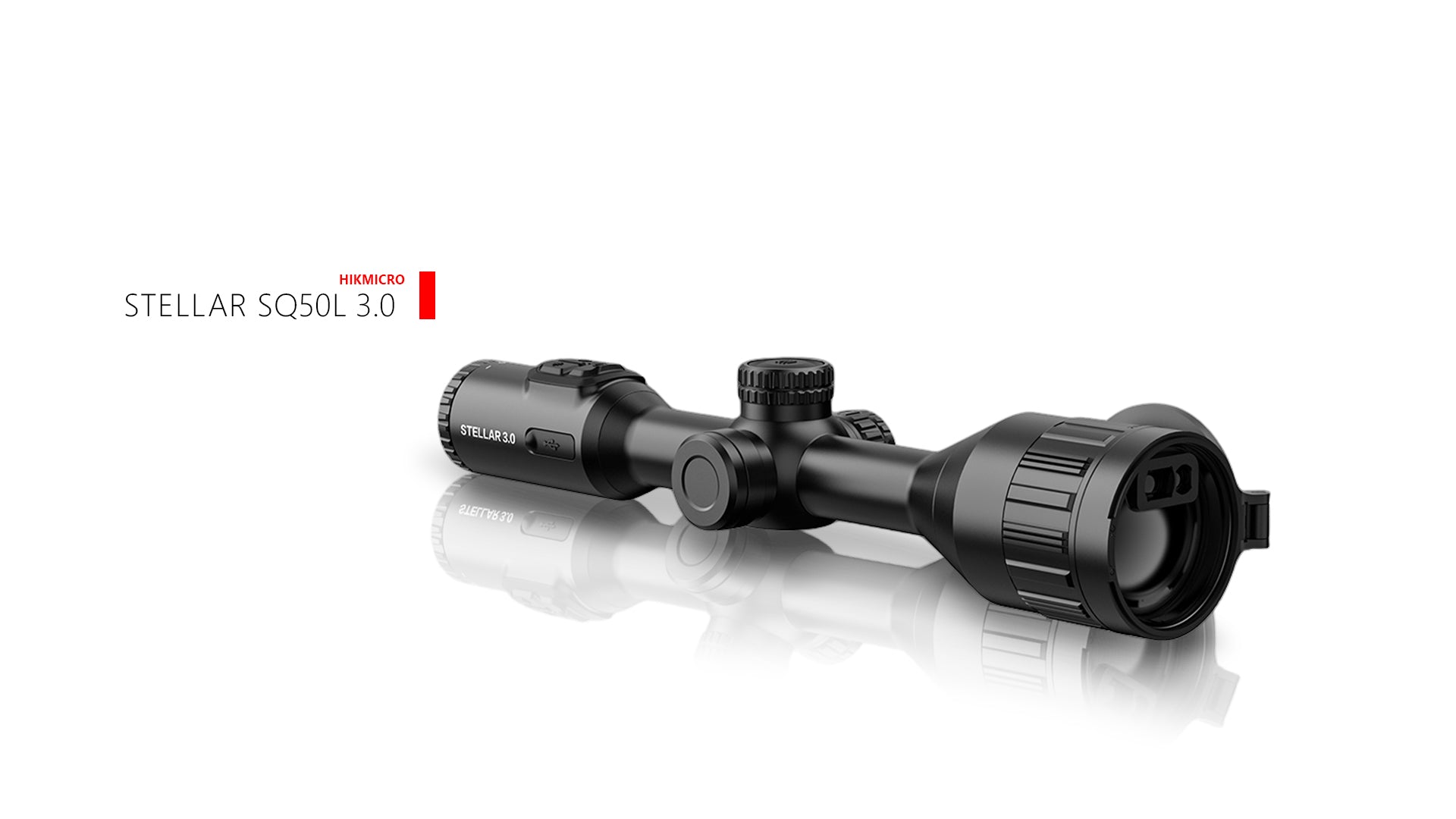

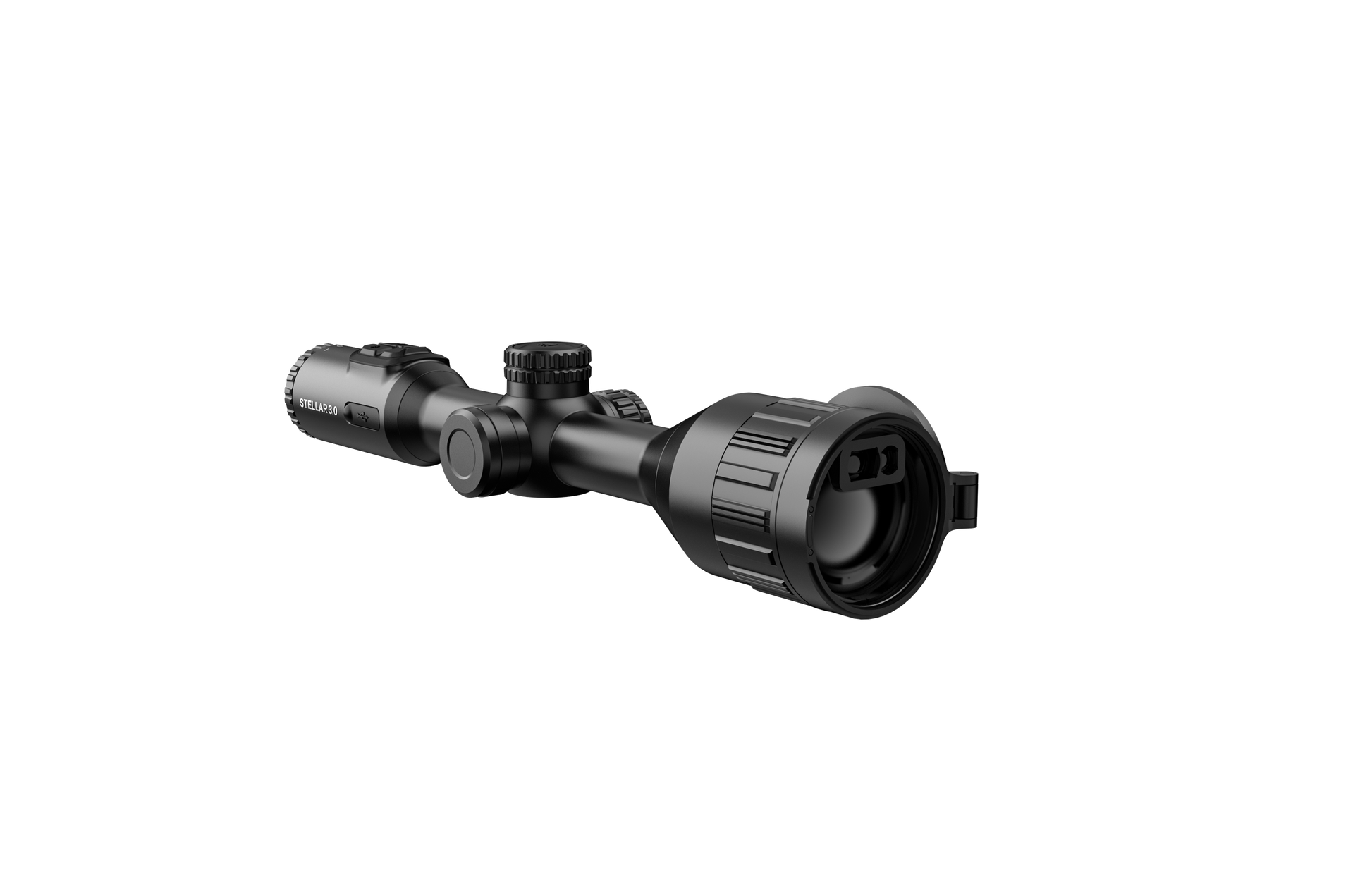

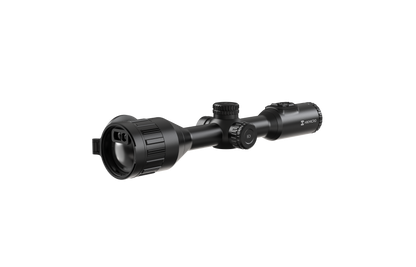

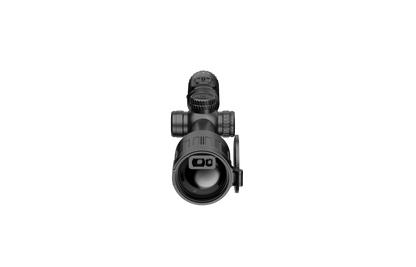

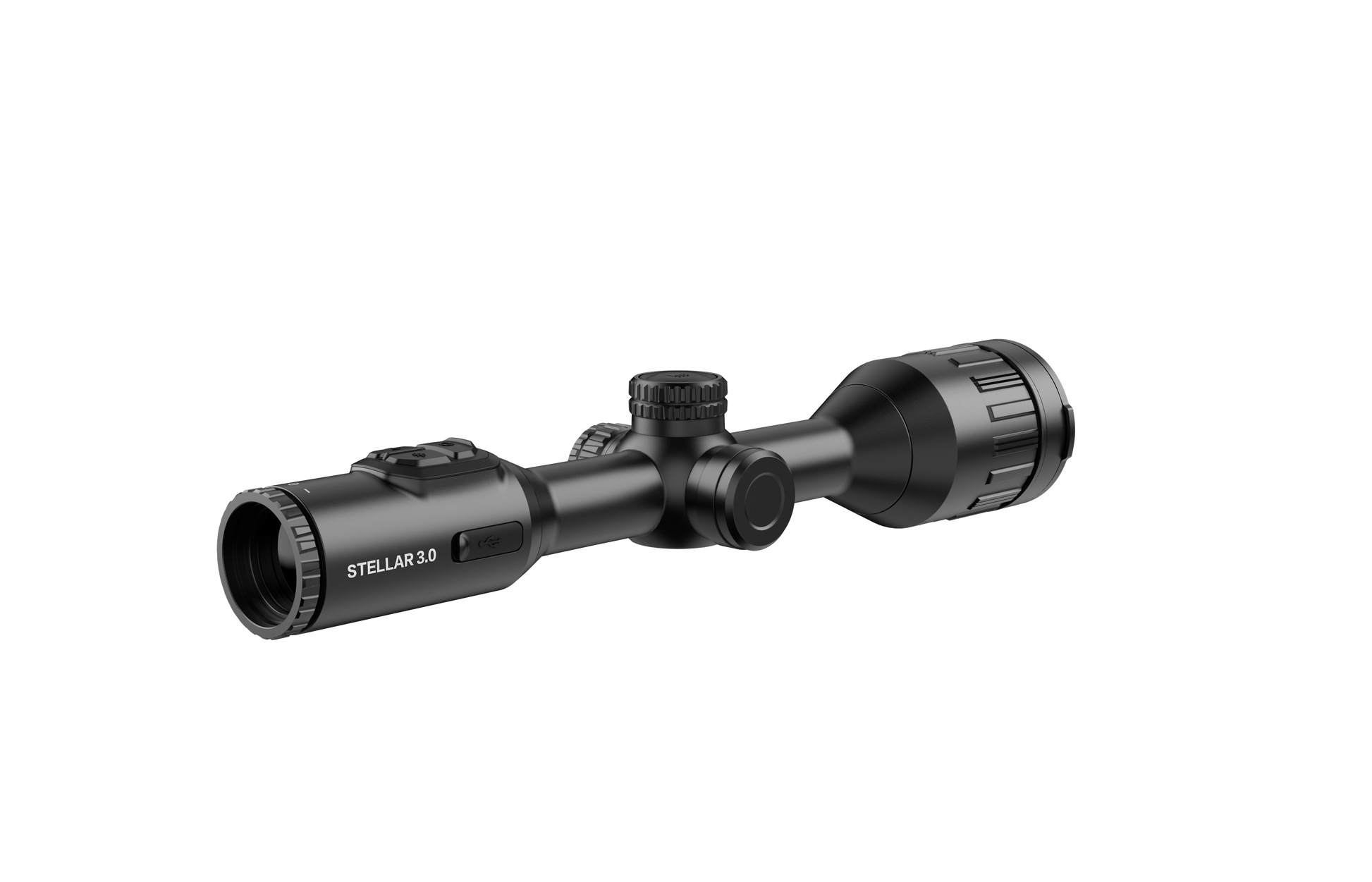

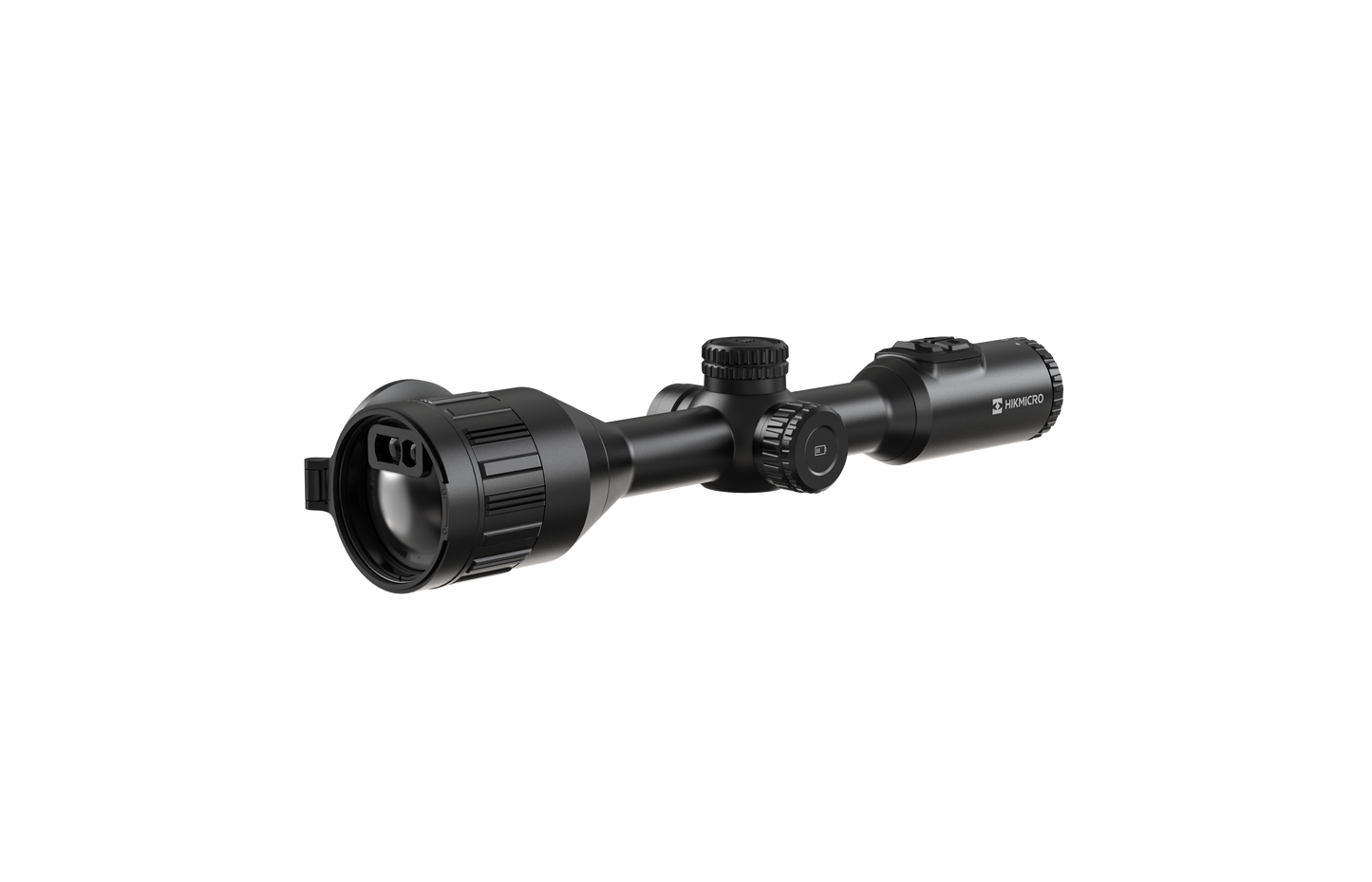

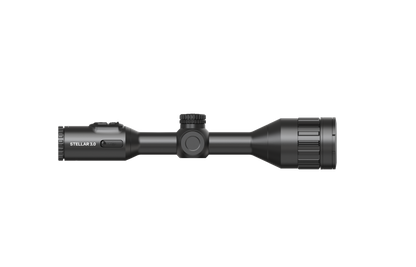

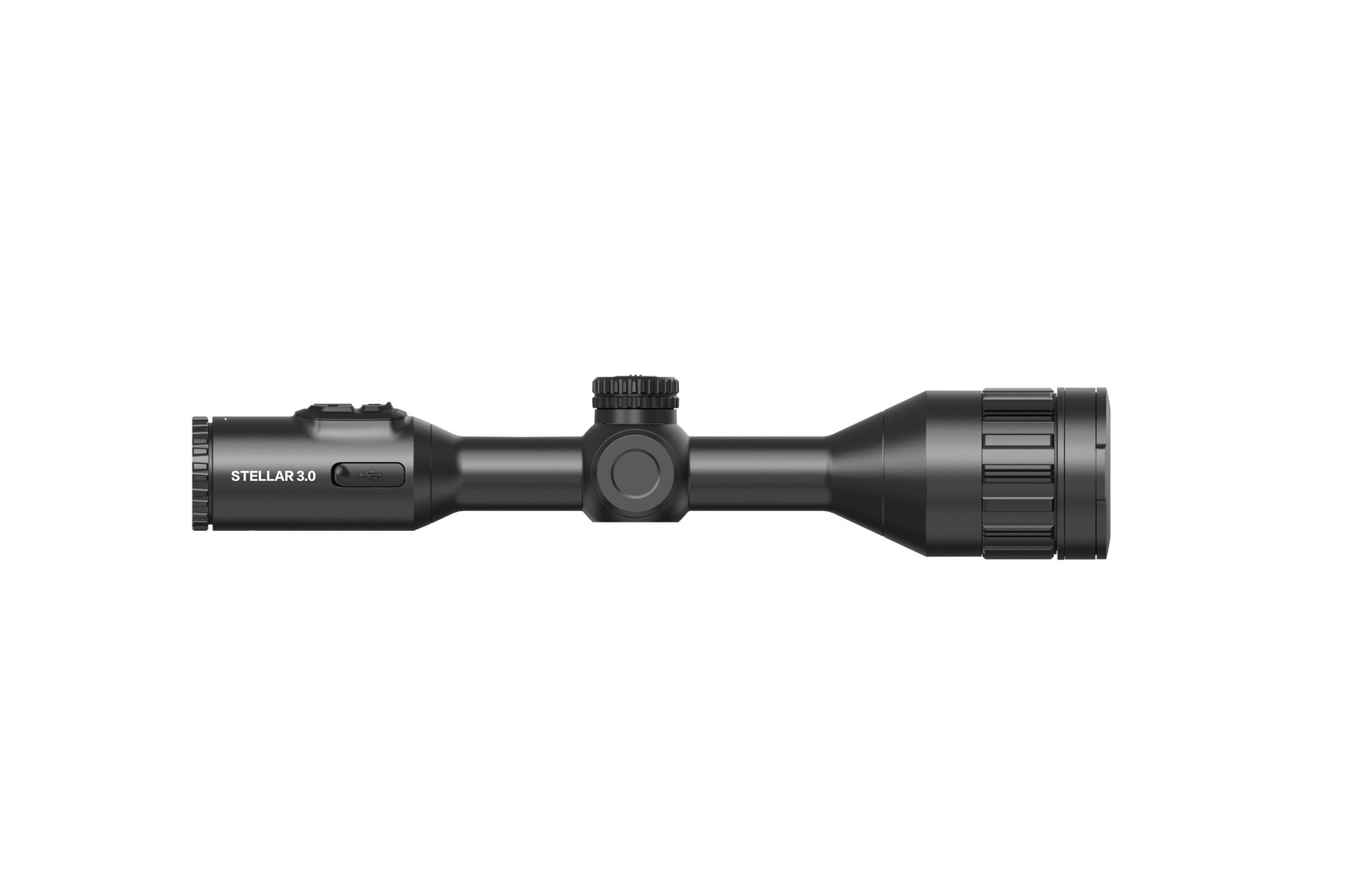

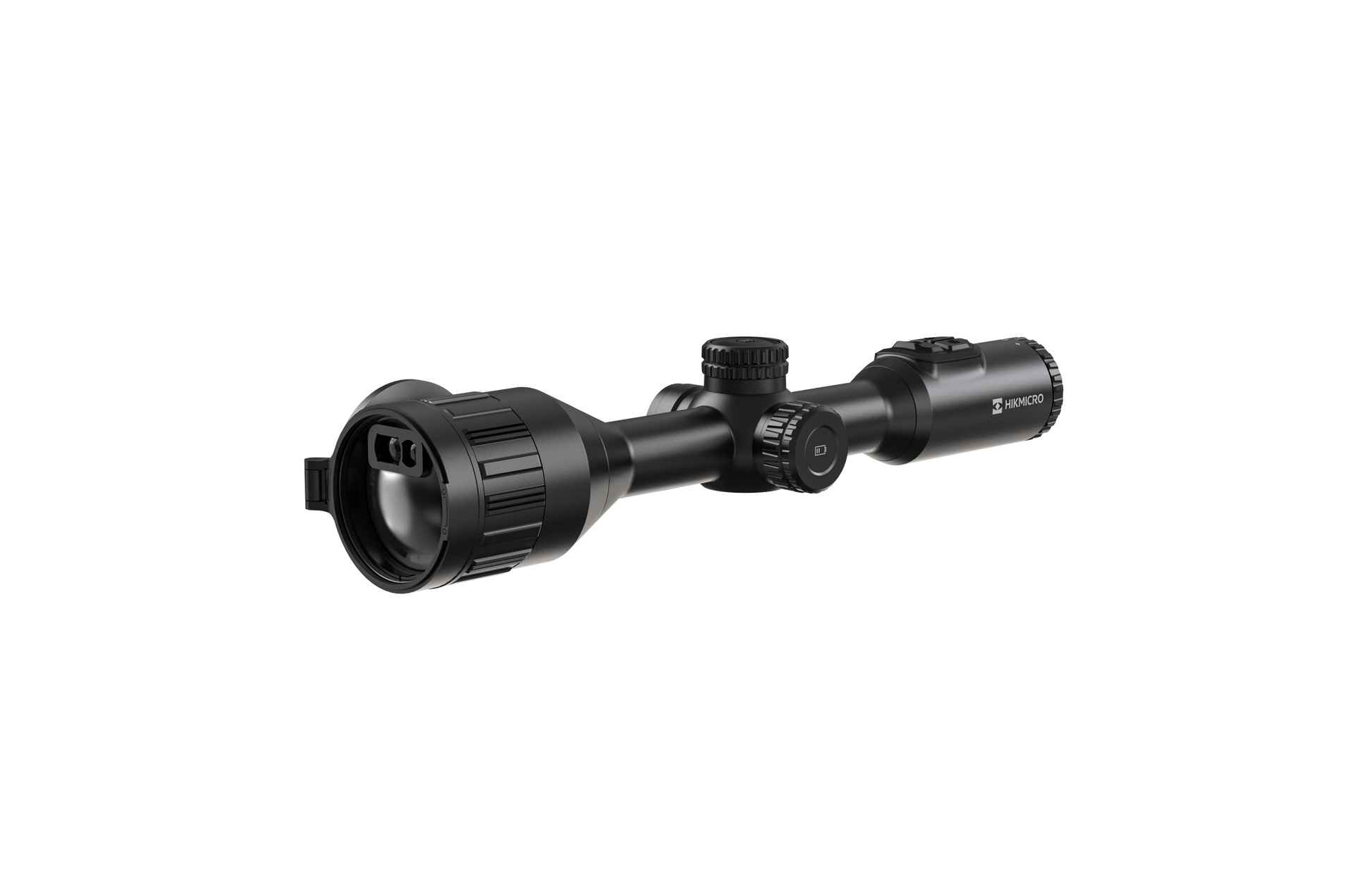

HIKMICRO STELLAR 3.0 SQ50L

(Stock levels may vary, Shipping times are direct from supplier)

HIKMICRO STELLAR SQ50L 3.0 Thermal Scope is equipped with a 640 × 512 @12 μm thermal detector, with much higher sensitivity (NETD<15 mK) and the latest image processing algorithm (Image Pro 2.0) and shutterless System (HSIS), ensuring users catch the finest details no matter the weather or light conditions without interruption. With a 2560 × 2560 1.03” OLED larger display, SQ50L 3.0 makes it easier to spot targets quickly and accurately. The built- in lens 1000 m LRF and ballistic calculation contribute to more accurate shooting. The scope is mainly used for field and forest hunting.

Key Features * 640 × 512 Resolution @12 μm thermal detector * High sensitivity Thermal Module NETD<15 mK (@25°C, F# = 1.0) * 50 mm, F1.0 lens with detection range up to 2600 m * 2560 × 2560 Resolution 1.03-inch OLED display * HIKMICRO Shutterless Image System (HSIS) * Built-in lens laser rangefinder up to 1000 m, with ballistic calculation * Rechargeable internal batteries and external battery, 9h continuous operation * High shock resistance up to 1000 g/0.4 ms

Specification Laser Rangefinder * LRF Module in Lens: Yes * Safety Class for Laser: Class 1 * Wavelength: 905 nm * Max. Measuring Range: 1000 m * Measurement Accuracy: ±1 m * Min. Measuring Range: 10 m

Thermal Module * Image Sensor: VOx Uncooled Focal Plane Arrays * Max. Resolution: 640 × 512 * Frame Rate: 50 Hz * Pixel Interval: 12 μm * Response Waveband: 8 μm to 14 μm * NETD: Less than 15 mK (@25°C, F# = 1.0) * Lens (Focal Length): 50 mm, F1.0 * Focus Mode: Focus Ring * Detection Range: 2600 m * Min. Focusing Distance: 5 m * Magnification: 3.6× to 26.6×, Support 1× step value of continuous zooming * Field of View(H×V), Degrees / m @100 m: 8.8° × 7.0°/15.4 m × 12.3 m

Image Display * Display: 2560 × 2560, 1.03-inch OLED * Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome * Exit Pupil: 6 mm * Eye Relief: 45 mm * Diopter (Range): -4D to 4D * Brightness Adjustment: Yes * Tone Adjustment: Cold, Warm * Contrast Adjustment: Yes * Zoom Pro: Yes * Image Pro 2.0: Yes * HSIS (HIKMICRO Shutterless Image System): Yes

System * Record Video: On-board Video Recording * Capture Snapshot: Yes * Audio Recording: Yes * Recoil-Activation Recording: Yes * Standby Mode: Yes * Storage: Built-in EMMC (64 GB) * PIP: Yes * Hotspot: Yes * Hot Track: Yes * Distance Measurement: Yes * Zeroing Profiles: 5 * Freeze Zeroing: Yes * Max. Recoil: 1000 g/0.4 ms * Ballistic Calculation: Yes * Local Album: Yes

Power Supply * Battery Type: Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external) * Battery Operating Time: 9 hours continuous running (@-25°C, Zoom Pro, LRF on) * Type-C Power Supply: DC 5 V/2 A, USB Type-C interface supports QC3.0 * Only the built-in battery will be charged via the type-C cable. Use the battery charger to charge the external battery.

General * Protection Level: IP67 * Mounting Standard: 30 mm * Dimension: 422.5 mm × 88.4 mm × 74.5 mm * Working Temperature: -30°C to 55°C (-22°F to 131°F) * Weight: 860 g without external battery * Center Height: 36 mm
