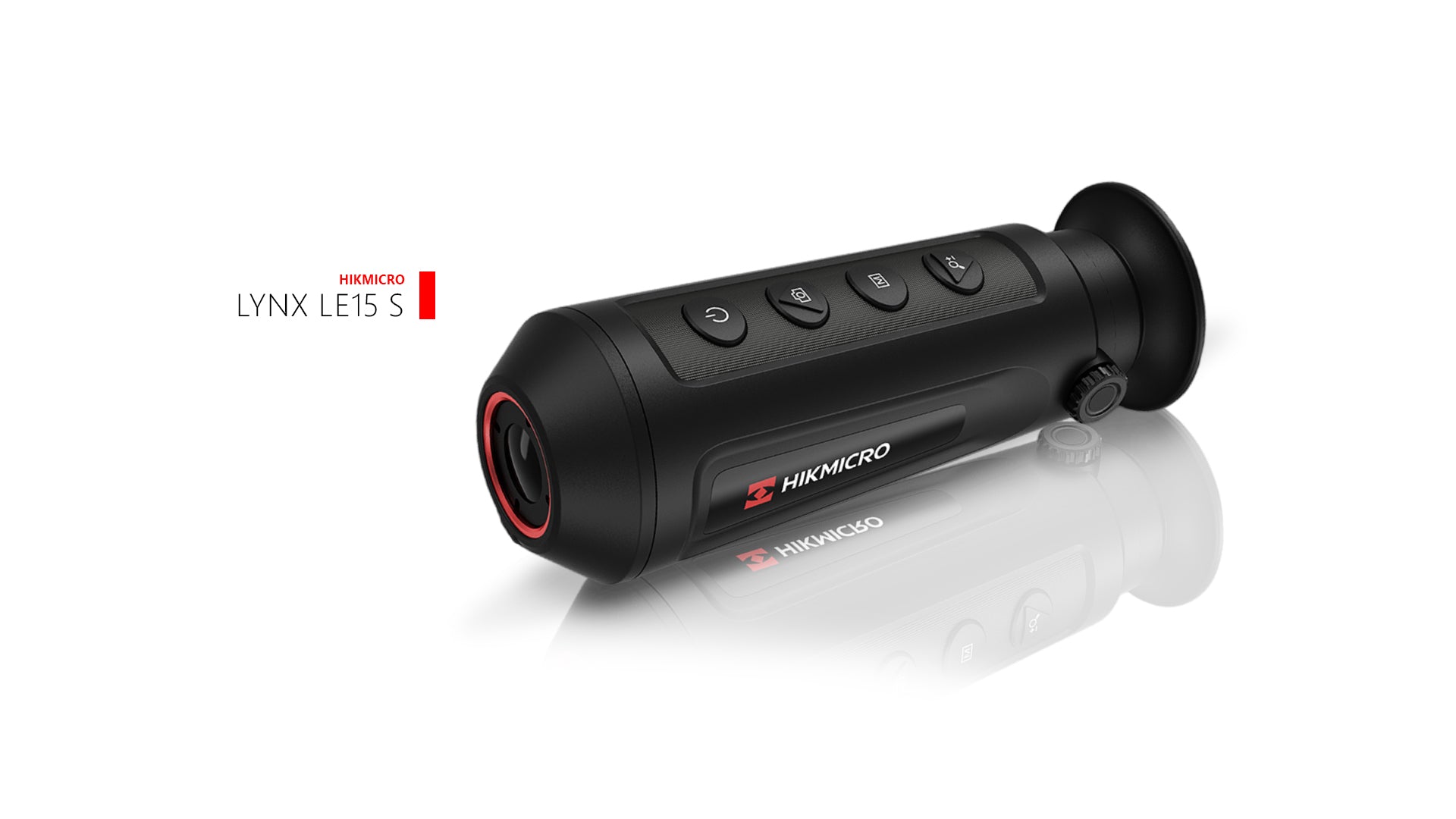

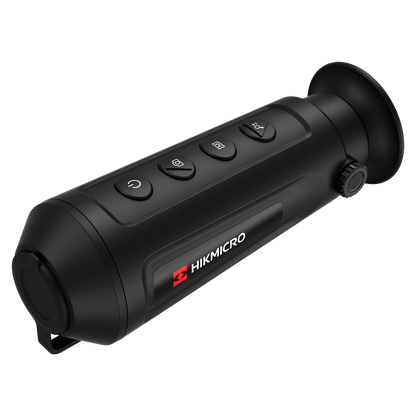

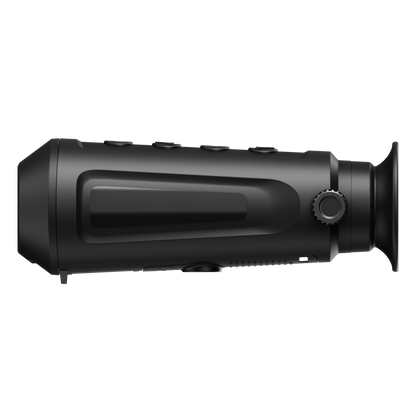

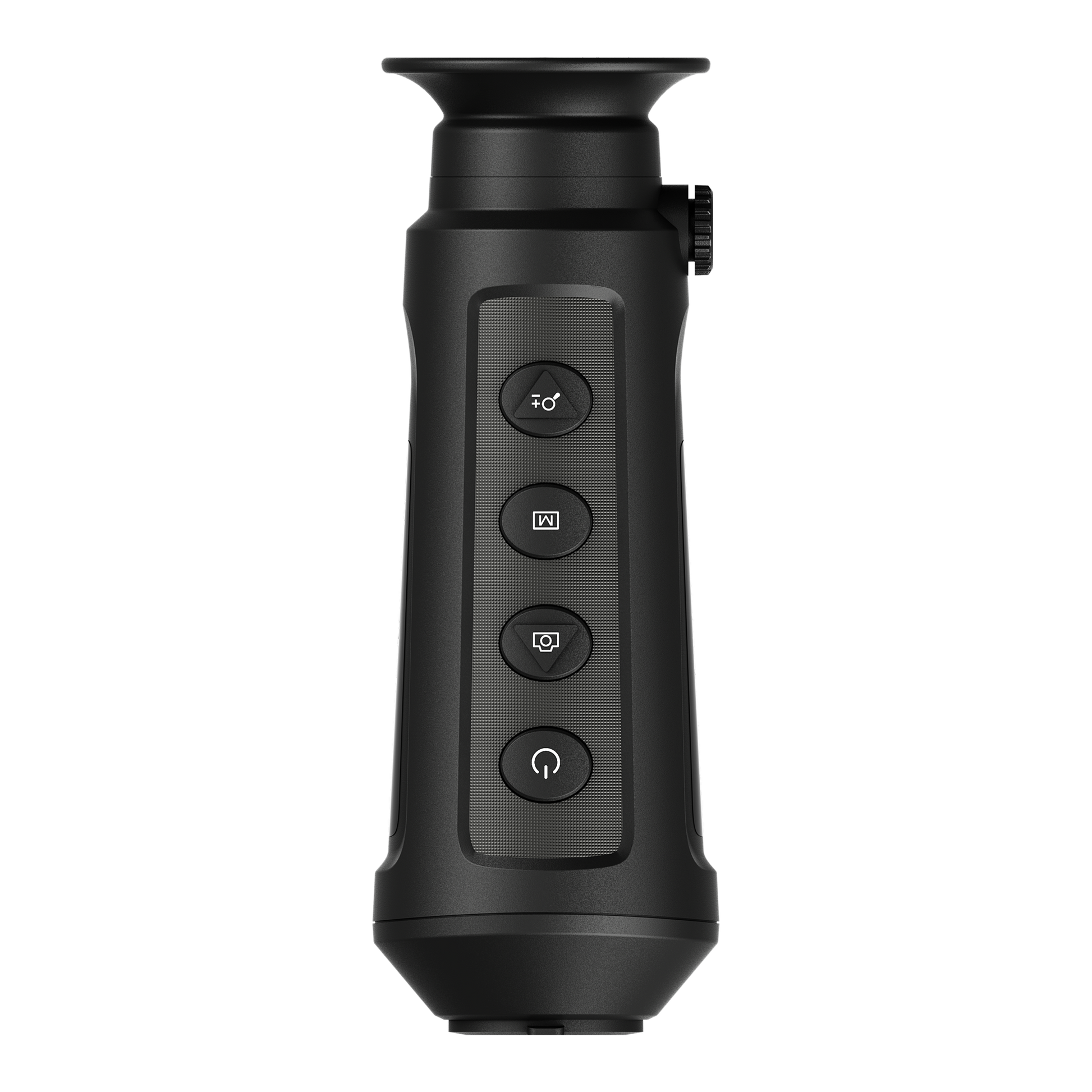

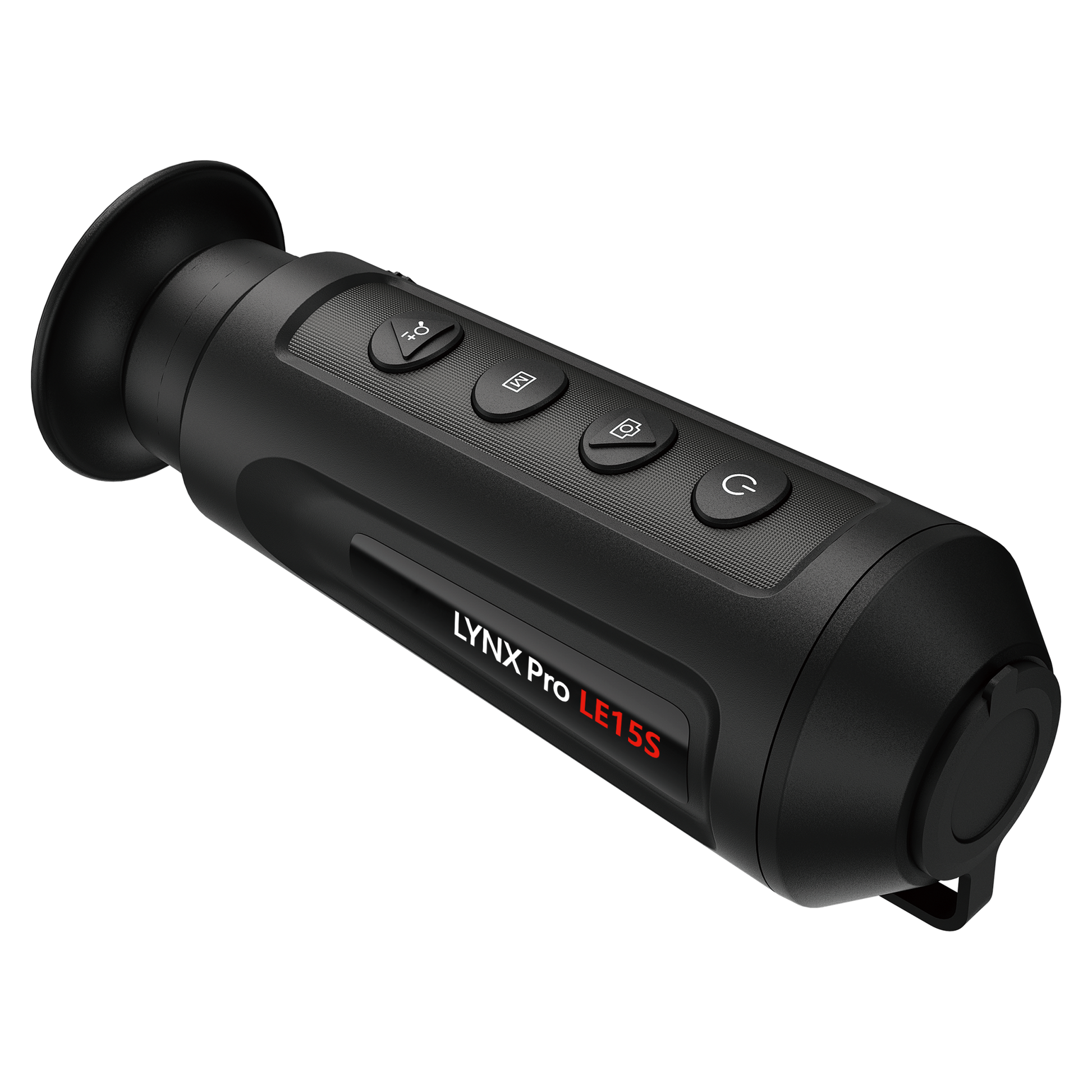

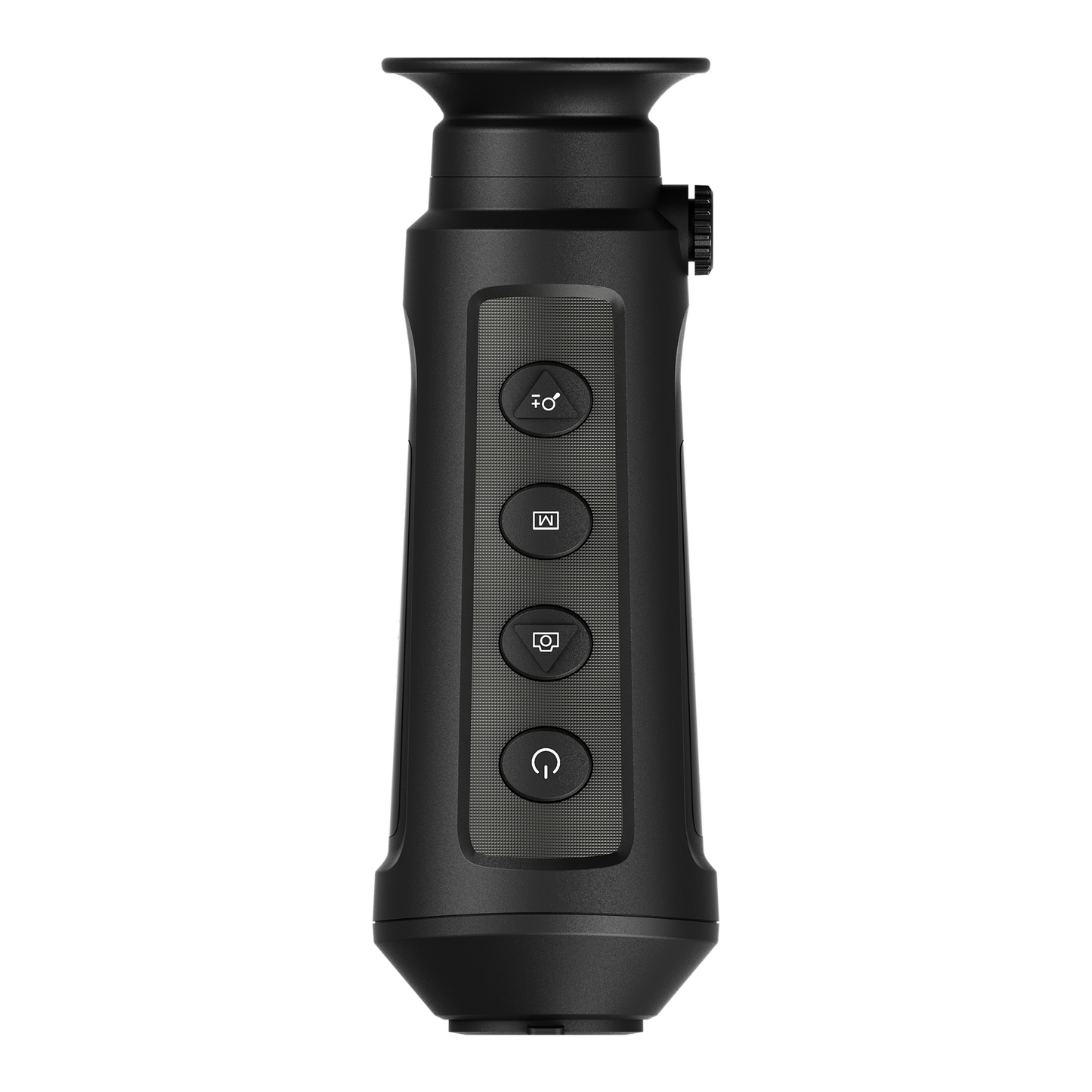

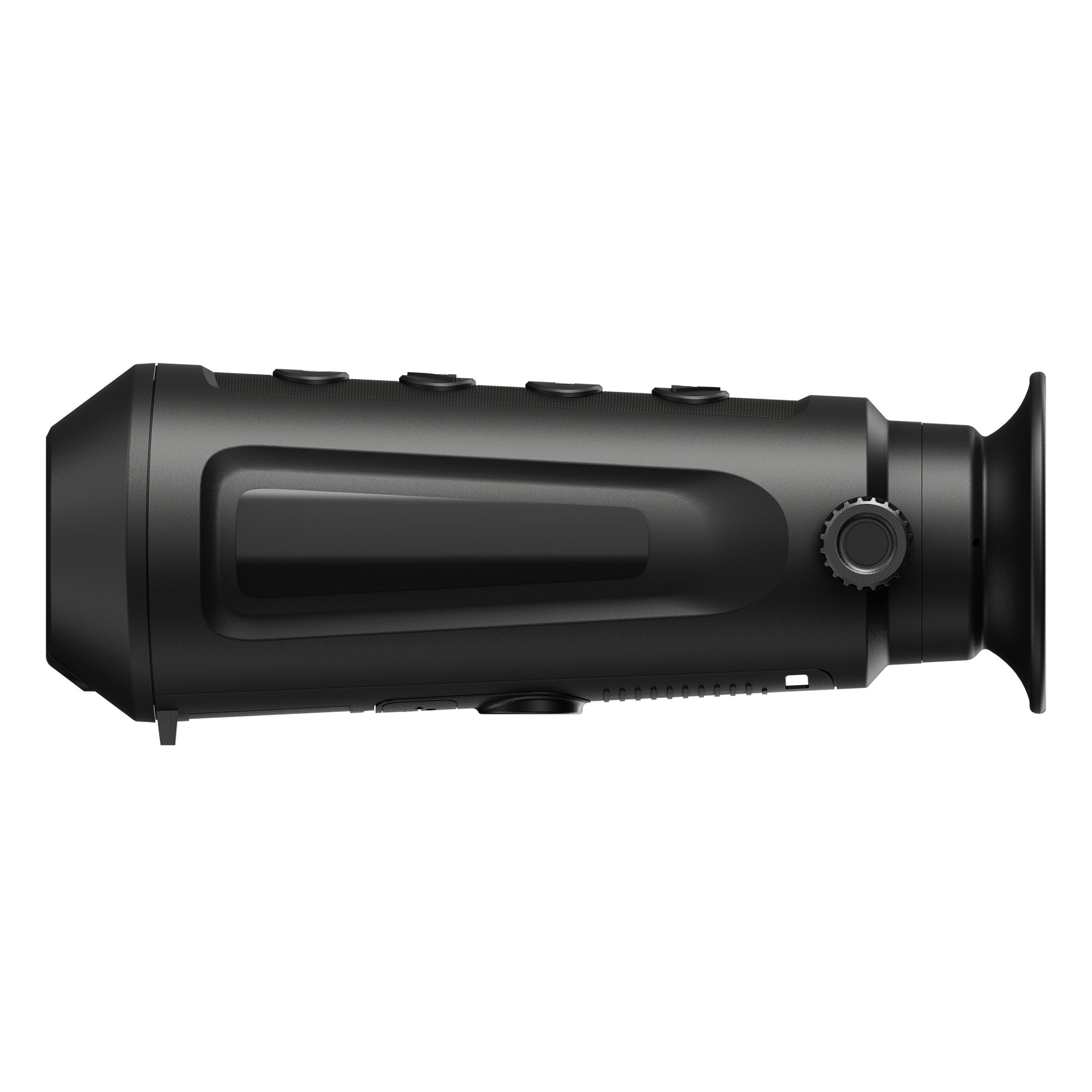

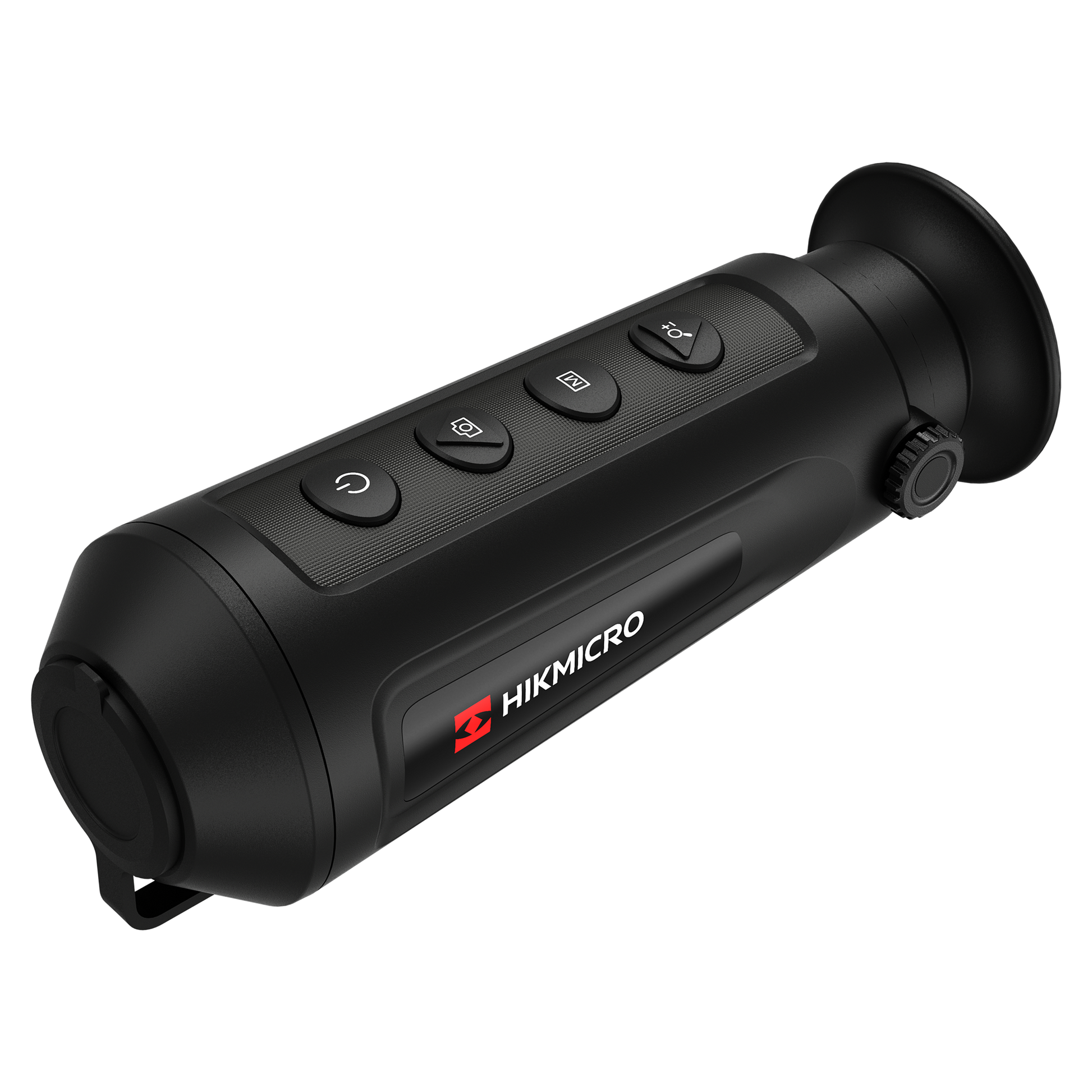

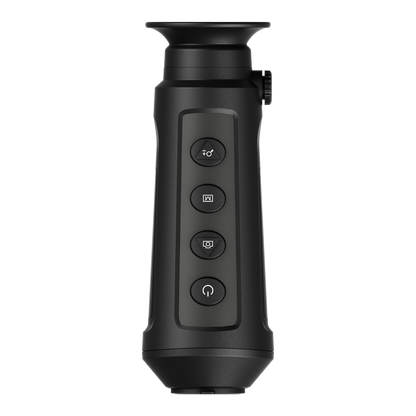

HIKMICRO LYNX S LE15S

(Stock levels may vary, Shipping times are direct from supplier)

HIKMICRO LYNX S LE15S thermal monocular is equipped with a 256 × 192 infrared detector and an 800 × 600 OLED display. It supports functions of observation, distance measurement, hotspot, and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness. The monocular is mainly applied to scenarios such as hunting, hiking, searching and rescuing, etc.

Key Features * 256 × 192 Resolution, 12 μm, high sensitivity detector * Adaptive AGC, DDE, 3D DNR * NETD less than 35 mK (@25°C, F# = 1.0) * 800 × 600 Resolution 0.32-inch OLED display * Built-in rechargeable lithium battery * Up to 8 hours continuous running * Supports hotspot

Specification Thermal Module * Image Sensor: VOx Uncooled Focal Plane Arrays * Max. Resolution: 256 × 192 * Frame Rate: 50 Hz * Pixel Interval: 12 μm * Response Waveband: 8 μm to 14 μm * NETD: Less than 35 mK (@25°C), F# = 1.0 * Lens (Focal Length): 15 mm, F1.0 * Detection Range: 750 m * Focus Mode: Focus Free * Min. Focusing Distance: 10 m * Magnification: 2.2× to 17.6× (8×) * Field of View(H × V), Degrees / m @100 m: 11.7° × 8.8° / 20.5 m × 15.4 m

Image Display * Display: 800 × 600, 0.32-inch, OLED * Palettes: Black Hot, White Hot, Red Hot, Fusion * FFC (Flat Field Correction) Mode: Auto, Manual, External Correction * Exit Pupil: 20 mm * Eye Relief: 6 mm * Diopter (Range): -5D to +4D * Brightness Adjustment: Yes * Tone Adjustment: Cold, Warm * Contrast Adjustment: Yes

System * Record Video: Yes * Capture Snapshot: Yes * Audio Recording: Yes * Standby Mode: Yes * Storage: Built-in memory module (8 GB) * PIP: Yes * Hotspot: Yes * Hot Track: Yes * Distance Measurement: Yes

Power Supply * Battery Type: Rechargeable Lithium Battery * Battery Operating Time: 8 hours continuous running with hotspot function off (@25°C), 6 hours continuous running with hotspot function on (@25°C) * Type-C Power Supply: DC 5 V/2 A * Supports External Power Supply

General * Protection Level: IP67 * Dimension: 158.3 mm × 61 mm × 57 mm (6.23” × 2.40” × 2.24”) * Working Temperature: - 20°C to 55°C (-4°F to 131°F) * Weight: 280 g (0.62 lbs)
