HIKMICRO LYNX PRO LH15 384x288. 12mic.m 708M Thermal
HIKMICRO LYNX PRO LH15 384x288. 12mic.m 708M Thermal

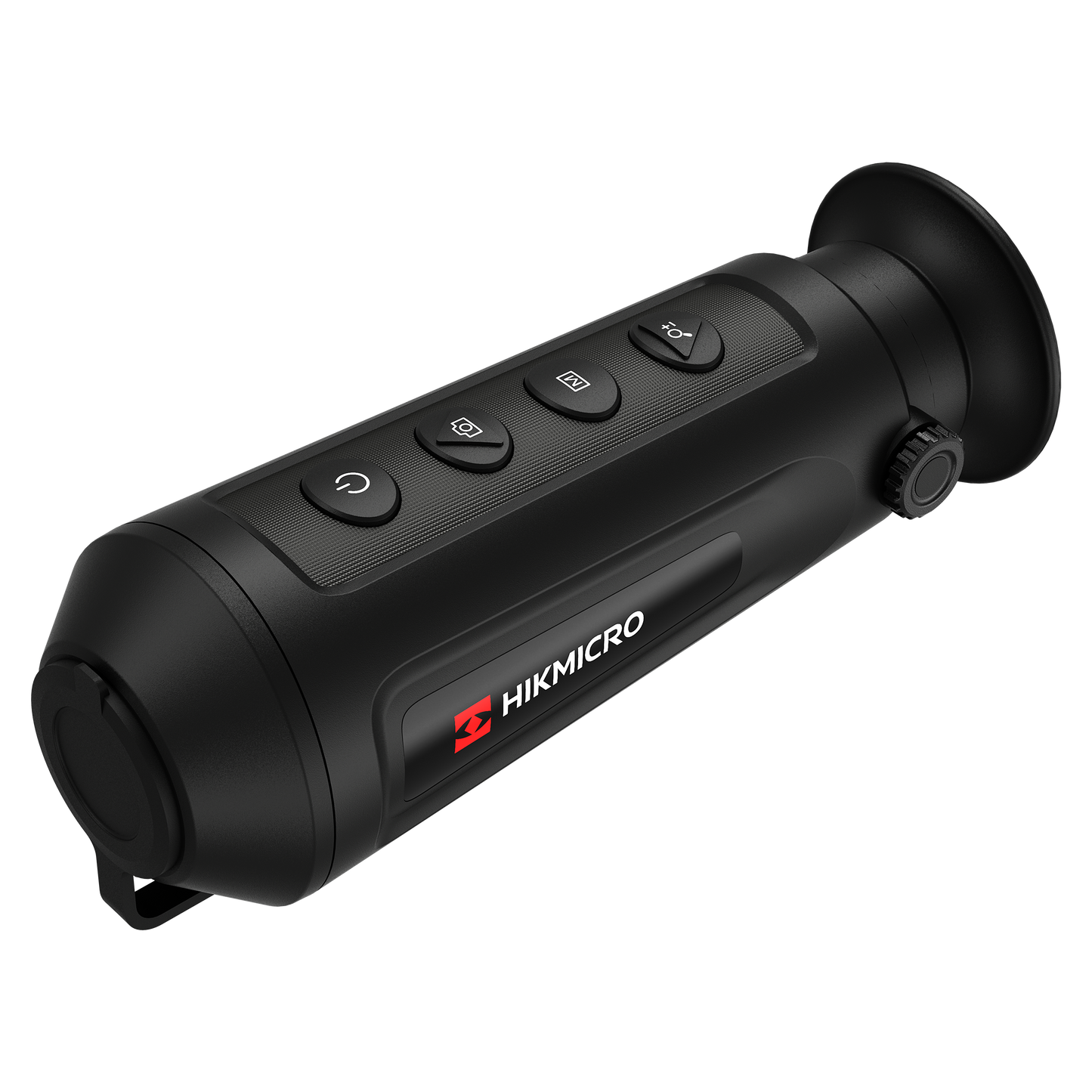

HIKMICRO LYNX Pro LH15 handheld thermal monocular camera is equipped with a 384 × 288 infrared detector and a 1280 × 960 LCOS display.
It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on.
The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, searching and rescuing, hiking, travel, and hunting, etc.
Key Features
● 384 × 288 resolution, 12 μm, high sensitivity detector
● Adaptive AGC, DDE, 3D DNR, NETD less than 35 mk (@25°C), F#=1.0
● 1280 × 960 resolution 0.4-inch LCOS display
● Built-in rechargeable lithium battery
● Up to 7.5 hours continuous running
● Wi-Fi hot spot
● Type-C Interface
Specification
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 384 × 288
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD less than 35 mk (@25°C), F#=1.0
Lens (Focal Length) 15 mm
Field of View 17.5° × 13.1° (H × V)
Digital Zoom 1 ×, 2 ×, 4 ×, 8 ×
Aperture F1.0
Magnification 1.47 to 11.76
Image Display
Monitor 0.4 inch, LCOS, 1280 × 960
FFC (Flat Field Correction) Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion
Frame Frequency 50 Hz
Smart Function
Wi-Fi Hot Spot Yes
Standby Mode Yes
Detection Range 708 m
System
Storage Built-in memory module (8 GB)
Record Video Yes
Capture Snapshot Yes
Power Supply
Battery Type Lithium battery
Battery Operating Time
7.5 hours continuous running with Wi-Fi hot spot function off (@25°C)
6 hours continuous running with Wi-Fi hot spot function on (@25°C)
Battery Capacity Display Yes
General
Power 5 VDC/2 A, 1.5 W, Type-C Interface
Working Temperature -20 °C to 55 °C (-4 °F to 131 °F)
Protection Level IP67
Dimension 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
Weight 290 g (0.64 lb
