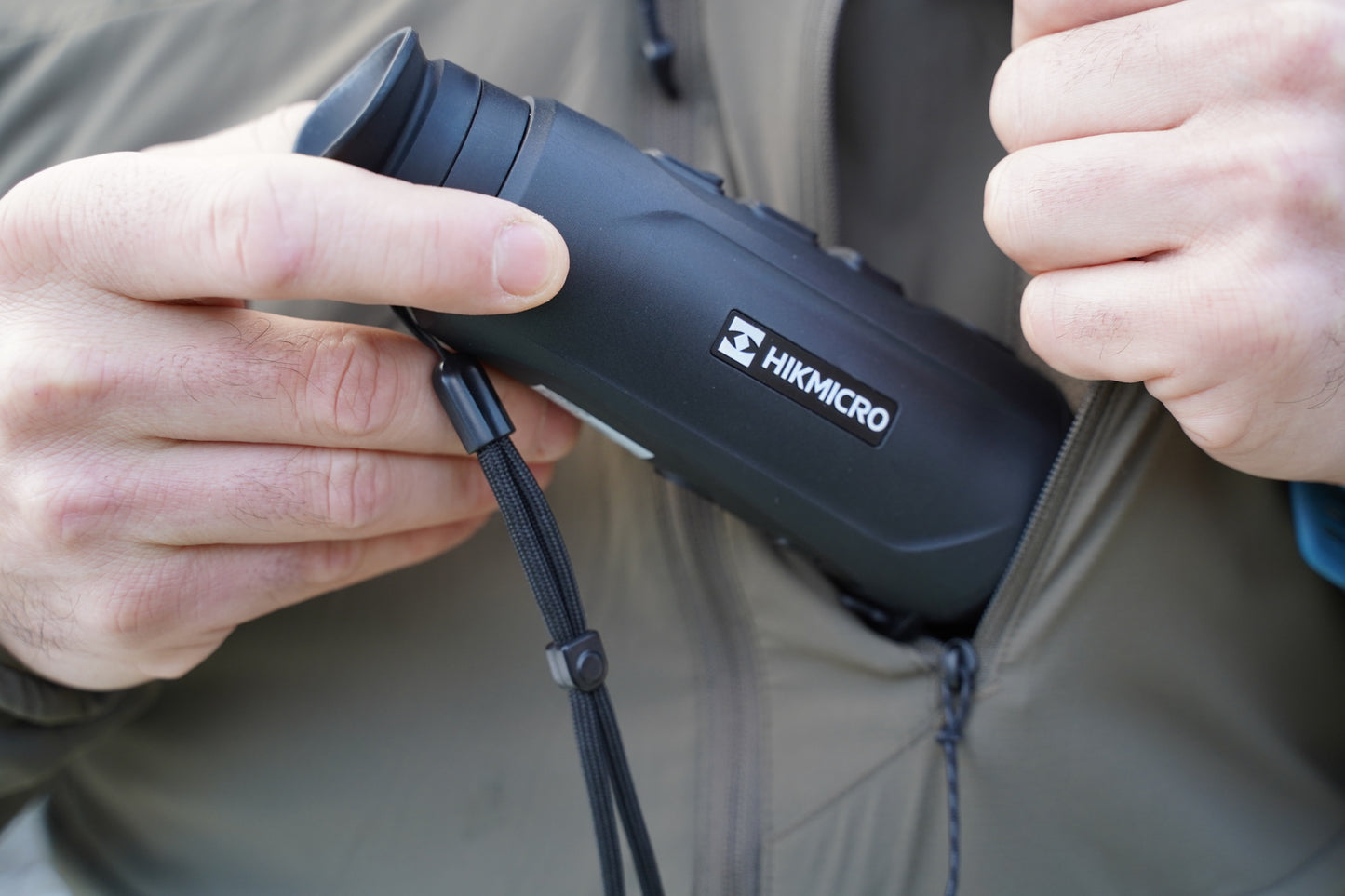

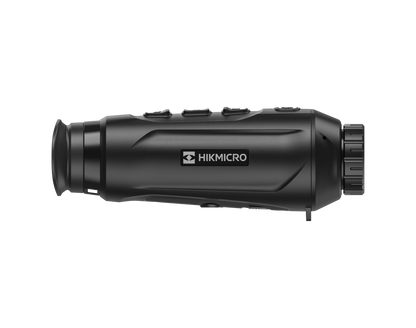

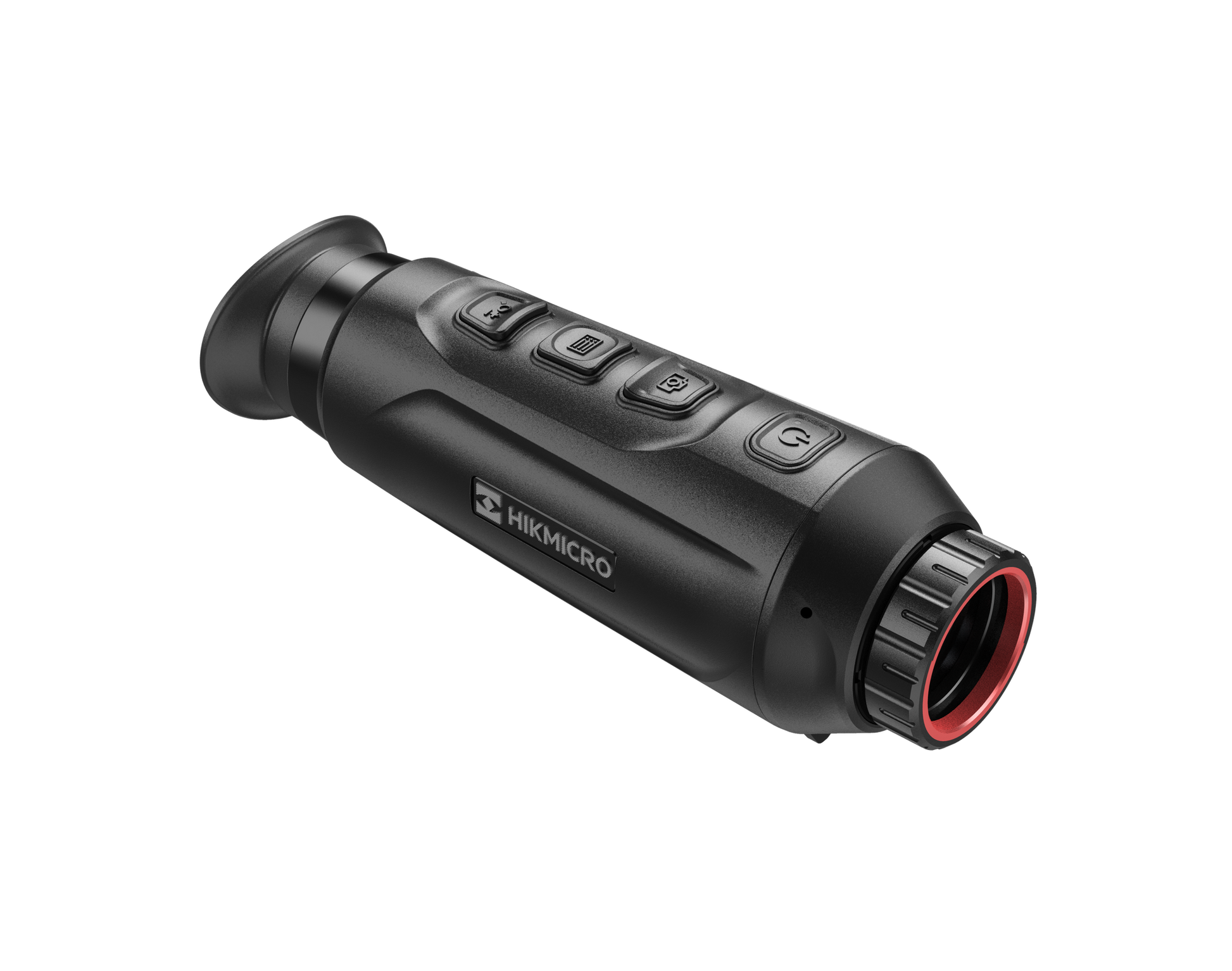

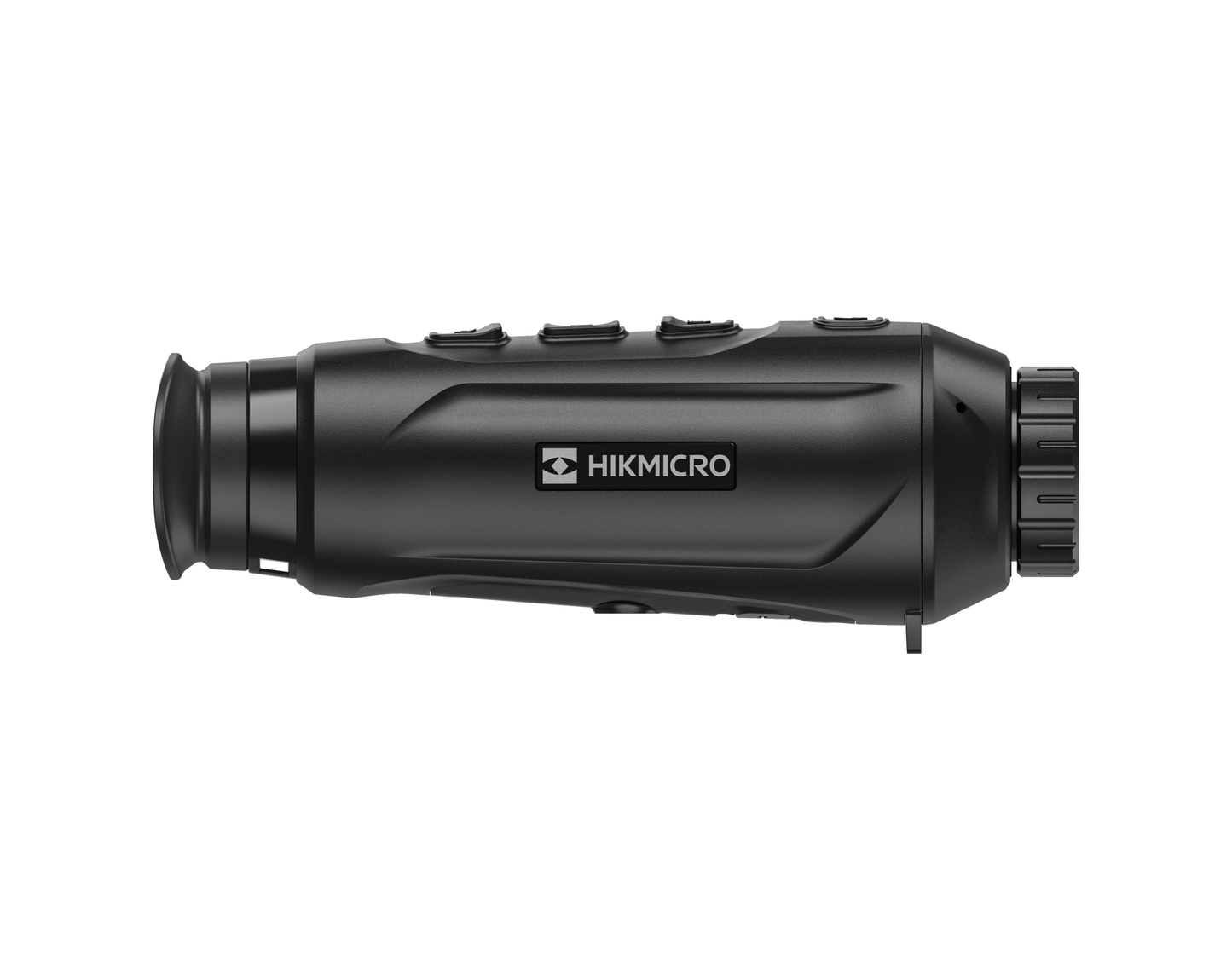

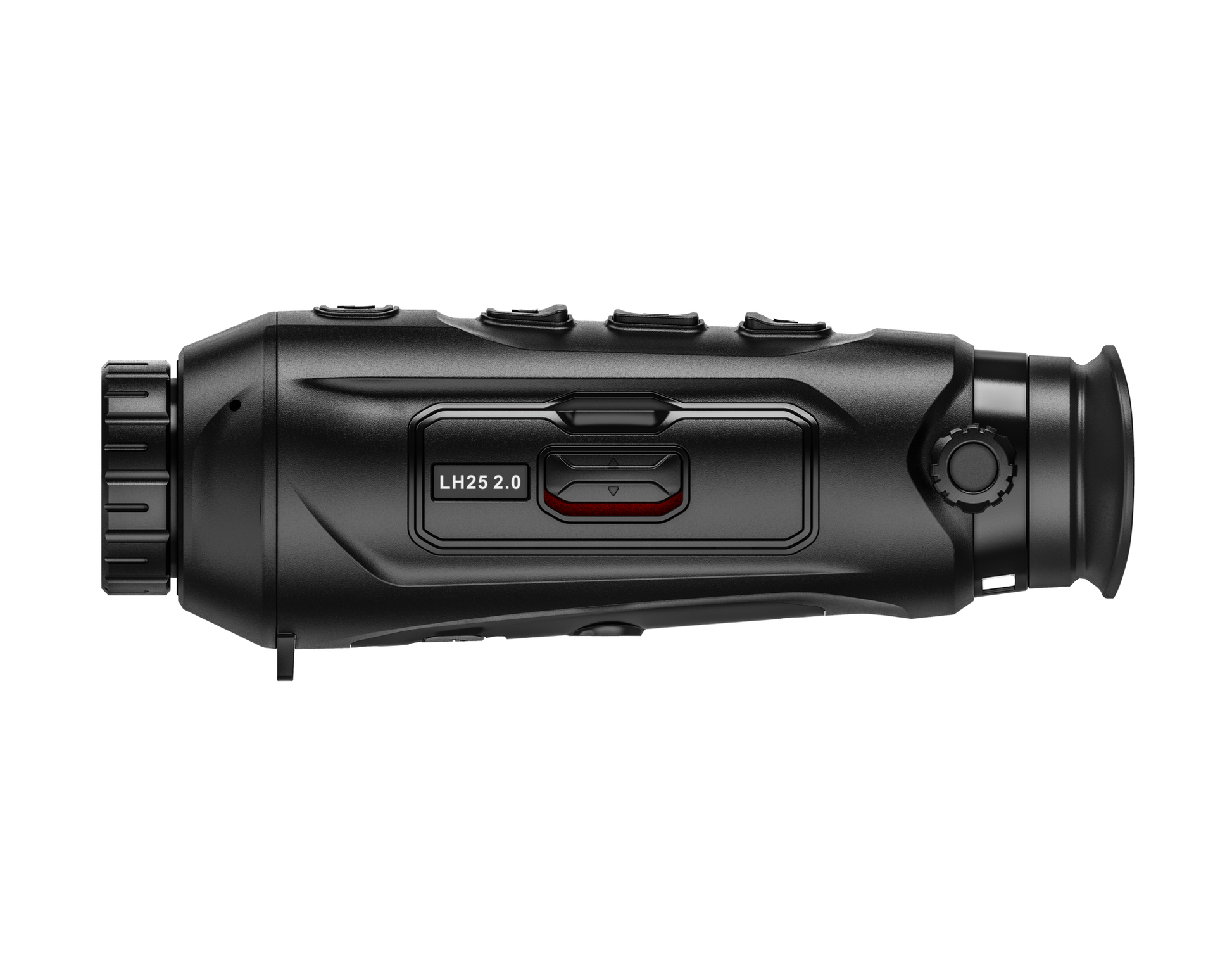

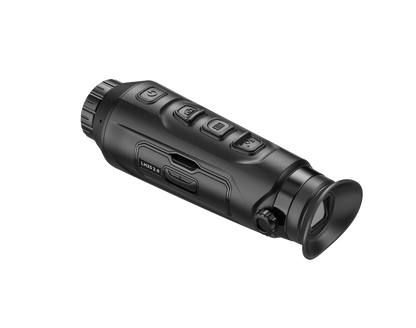

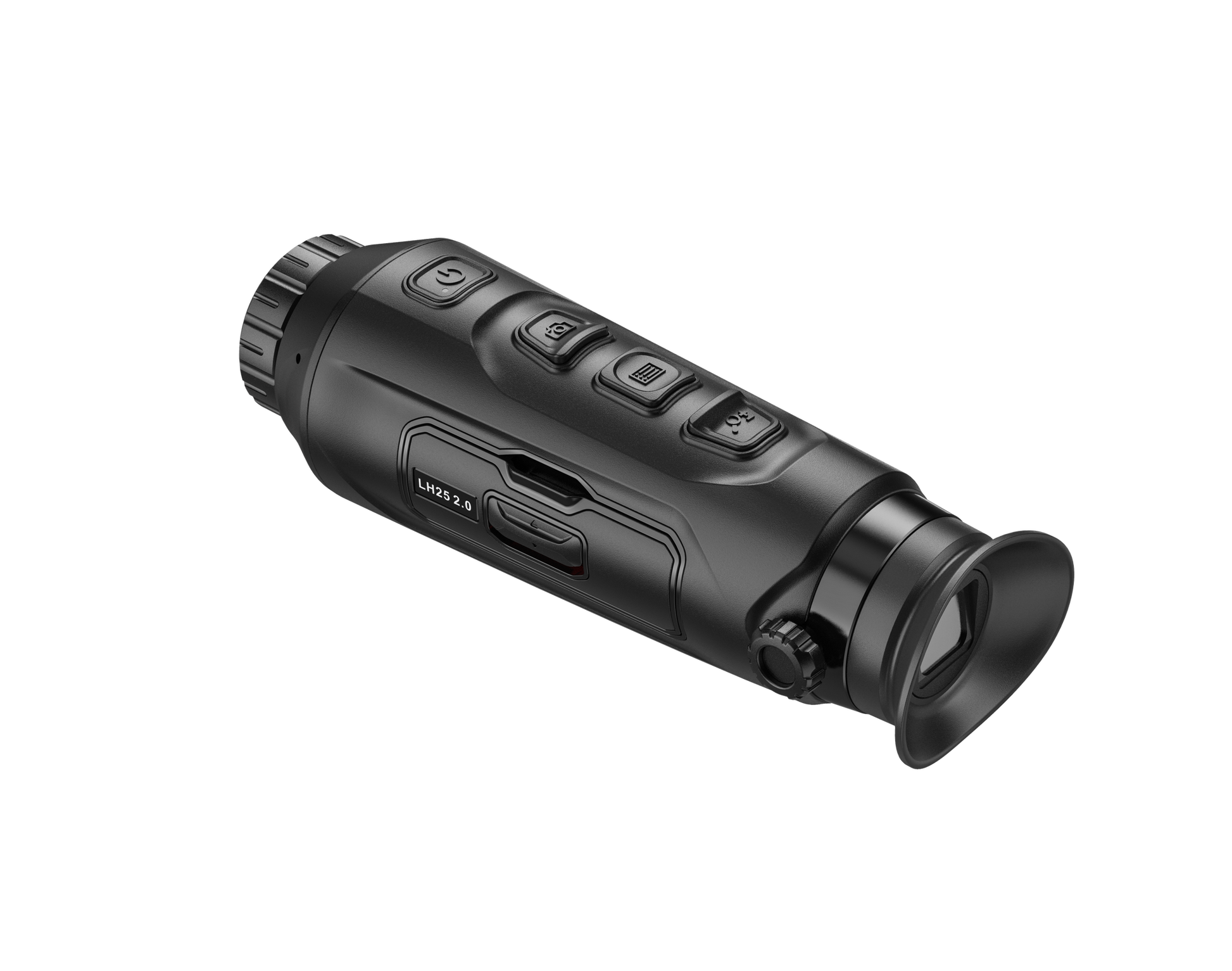

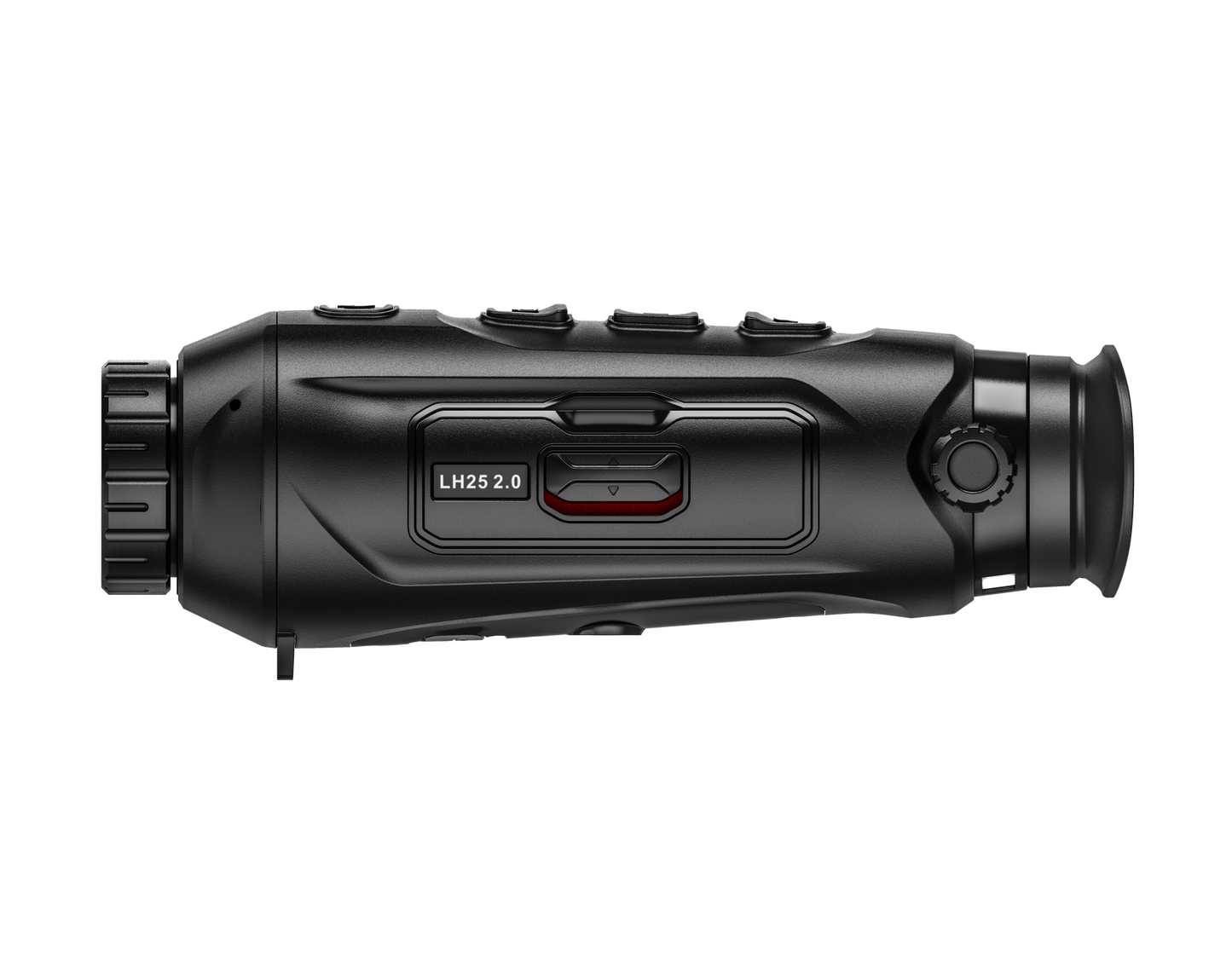

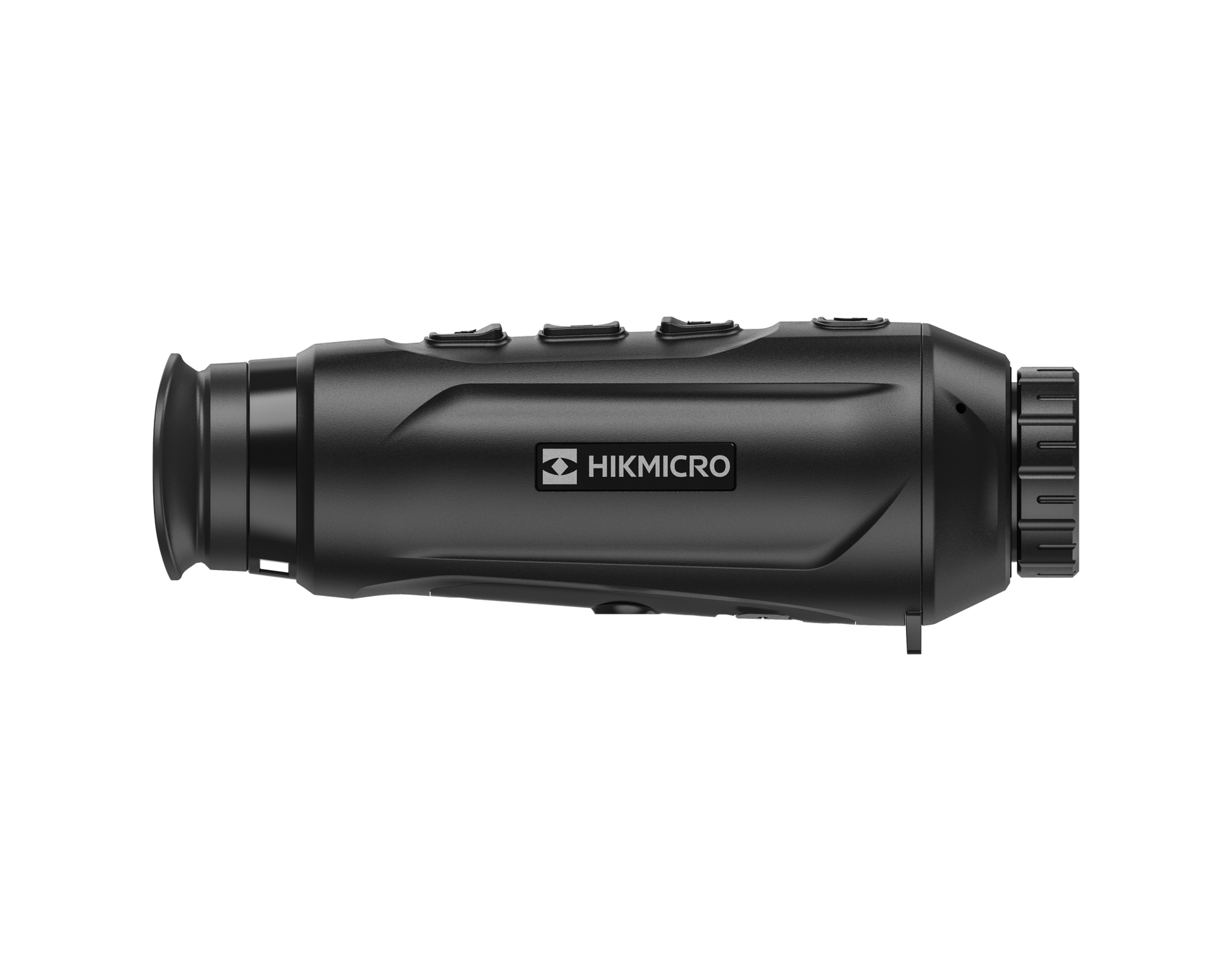

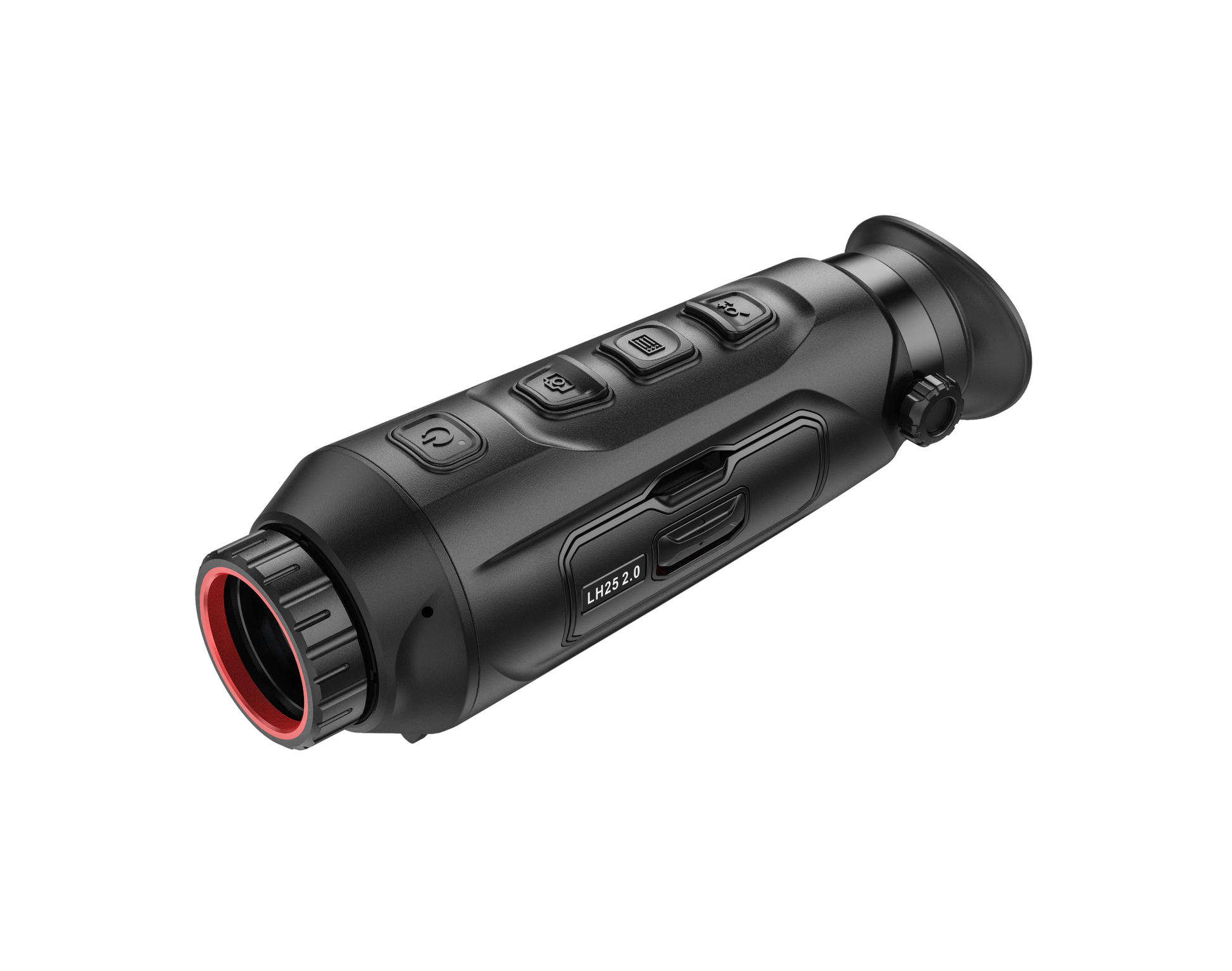

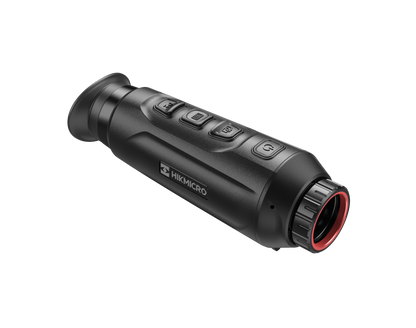

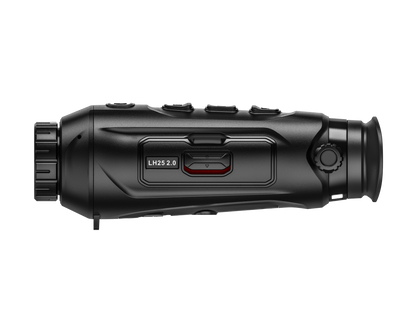

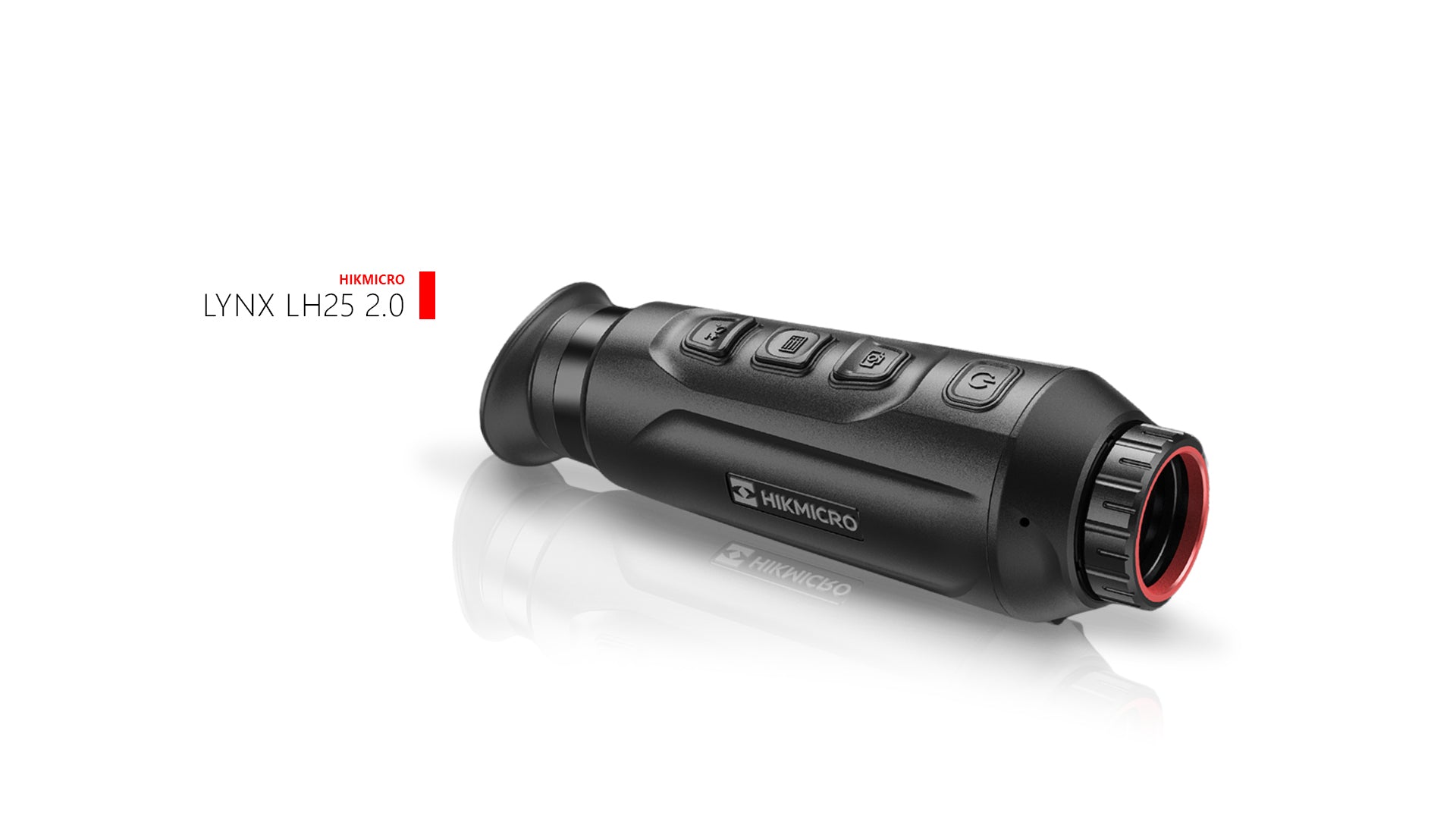

Equipped with a powerful 25 millimeter lens and an advanced 384 sensor with 12 micrometer pixel pitch, HIKMCRO LYNX LH25 2.0 captures highly detailed images at short and medium distances, especially with a high thermal sensitivity of NETD < 20 mK. With its exceptional capabilities, it effectively detects games at distances of up to 1200 meters.
Key Features * High sensitivity Thermal Module NETD < 20 mK (@25°C, F# = 1.0) * 384 × 288 Resolution with 12μm detector * 1024 × 768 Resolution 0.39-inch OLED display * Replaceable and rechargeable Li-ion battery * 275 g lightweight, with a compact and ergonomic design * Up to 6.5 hours of continuous operation
Specification Thermal Module * Image Sensor: VOx Uncooled Focal Plane Arrays * Max. Resolution: 384 × 288 * Frame Rate: 50 Hz * Pixel Interval: 12 μm * Response Waveband: 8 μm to 14 μm * NETD: Less than 20 mK (@25°C), F# = 1.0 * Lens (Focal Length): 25 mm, f1.0 * Focus Mode: Focus Ring * Detection Range: 1200 m * Min. Focusing Distance: 2.5 m * Magnification: 2.4x to 19.2x (8x) * Field of View(H × V), Degrees/ m @100m: 10.5° × 7.9°/ 18.4 m×13.8 m
Image Display * Display: 1024 × 768, 0.39 inch, OLED * Palettes: Black Hot, White Hot, Red Hot, Fusion * FFC (Flat Field Correction) Mode: Auto, Manual, External Correction * Exit Pupil: 6 mm * Eye Relief: 20 mm * Diopter (Range): -5 D to +3 D * Brightness Adjustment: Yes * Tone Adjustment Cold, Warm * Contrast Adjustment: Yes
System * Record Video: Yes * Capture Snapshot: Yes * Audio Recording: Yes * Standby Mode: Yes * Storage: Built-in EMMC (16 GB) * PIP: Yes * Hotspot: Yes * Hot Track: Yes * Distance Measurement: Yes
Power Supply * Battery Type: Replaceable and Rechargeable Li-ion Battery * Battery Operating: Time 6.5-hour continuous running with CVBS and hotspot function off (@25°C) * Type-C Power Supply: 5VDC, 2 A * Supports External Power Supply
General * Protection Level: IP67 * Dimension: 172.5 mm × 56.0 mm× 60.8 mm * Weight: 277 g without battery * Working Temperature: -30°C to +55°C
