Guide Outdoor

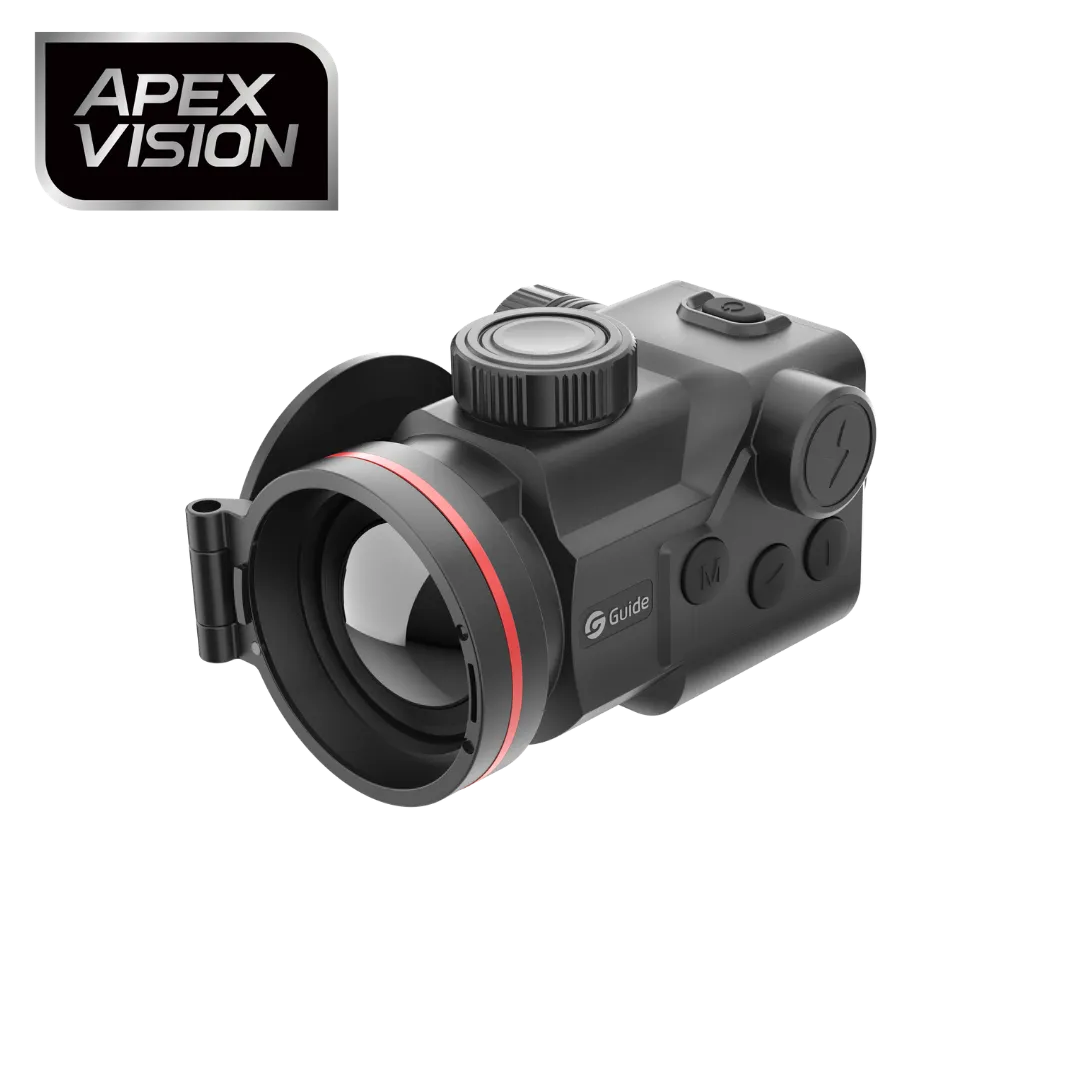

Guide TB650LS

Guide TB650LS

$4,799.00 AUD
$4,799.00 AUD
Sale Sold out
Tax included.
Specifications
Sensor
Core Technology Item Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 15mK
Frame rate 50Hz
Lens
Objective lens 50mm, F0.9
Field of view 8.8°×6.6°
FOV m@100m 15×11
Magnification 1x
Detection range 2600m/2800yd
Focus Manual
Display
Display type 0.39'' AMOLED 1920×1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 20mm
Hardware
Laser rangefinder 1200m/1300yd
WIFI 2.4G, 5G
Interface USB-C (Power supply/USB2.0)
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 64GB
Power
Battery type Single, Replaceable 18650 Battery
Operating time 5 hours
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Shock 6000J
Encapsulation IP68
Physical
Weight (g/oz) 485/17.11
Size (mm/in) 139×86×79/5.47×3.39×3.11
Standard Device, Carry Bag, Accessory Bag, Lint-Free Cloth, Battery Charger, 18650 Battery ×2, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional Bluetooth Remote Control, Adapter Ring, 18650 Battery
View full details
