Diamondback® 3-9x40 Dead-Hold® BDC (MOA) Reticle | 1inch Tube

(Stock levels may vary, Shipping times are direct from supplier)

With a long legacy of proven grit, Diamondback^® is a true workhorse, delivering hard-working reliability in trusted lineup of models. Excellent low-light capability. Brilliant contrast and sharpness that serves up impressive images. Renowned for toughness and accuracy, it’s built with durable construction and a lightweight design, giving hunters the confidence to push further and succeed in any terrain. Simple to use and rugged enough for any hunt, Diamondback^® is made to go the distance, from the East to the Rockies and beyond.

Diamondback 3-9x40 Dimensions (in inches)

Lengths
L1	L2	L3	L4	L5	L6
11.61	2.0	2.1	5.4	3.07	3.1

Heights
H1	H2
1.89	1.69



Specifications



Magnification	3-9x
Objective Lens Diameter	40 mm
Focal Plane	Second Focal Plane
Reticle	Dead-Hold® BDC (MOA)
Eye Relief	3.3"
Field of View	44.6' - 14.8' @ 100 yds
Turret Style	Capped
Tube Size	1 inch
Adjustment Graduation	1/4 MOA
Travel Per Rotation	15 MOA
Max Elevation Adjustment	70 MOA
Max Windage Adjustment	70 MOA
Parallax Setting	100 yds.
Length	11.6"
Weight	14.5 oz





XD™ Optical System	Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration, and guarantees bright, high-contrast images.
Fully Multi-Coated Lenses	Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Argon Gas Purged	Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.
Fast-Focus Eyepiece	Allows for quick and easy reticle focusing.
Aircraft Grade Aluminum	Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Low-Glare Matte Black Anodize	Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Waterproof	Designed to withstand harsh weather conditions.
Fogproof	Designed to withstand a wide range of temperatures.
Shockproof	Designed to withstand the highest levels of recoil and impact.





Dead-Hold^® BDC (MOA)

Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.

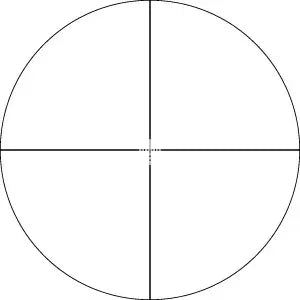

Subtension detail for Diamondback 3-9x40 riflescope with Dead-Hold^® BDC MOA reticle.



Included in the Box

• Removable lens covers
• Lens cloth
