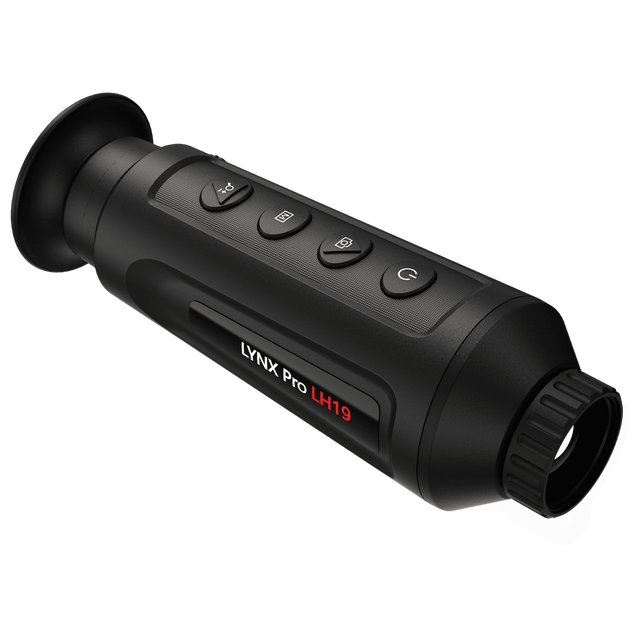

Hikmicro Lynx LH19.2 Thermal

Hikmicro Lynx LH19.2 Thermal

$1,979.00 AUD
$1,979.00 AUD
Sale Sold out
Tax included.



LH19 2.0 Thermal Monocular With its high thermal sensitivity of NETD < 20mK and 384 VOx sensor, the HIKMCRO LYNX LH19 2.0 ensures the production of harmonious and detailed images. Experience control with the manual focus feature, allowing you to precisely adjust the image to the exact distance.

Key Feature

● High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)

● 384 × 288 resolution with 12μm detector

● 1024 × 768 resolution 0.39-inch OLED display

● Replaceable and rechargeable Li-ion battery

● 280 g lightweight, with a compact and ergonomic design

● Up to 6.5 hours of continuous operation



Sub-20mK High Sensitivity Brings Detailed and Informative Images
With high sensitivity (NETD<20mK), the HIKMICRO LYNX 2.0 thermal monocular delivers detailed and informative images under all weather conditions.
Double-Charging Method and Fast Boot-On Bring More Lasting Use
The innovation of HIKMICRO LYNX 2.0 design is reflected in the power supply design. A replaceable and rechargeable battery can support 6.5 hours of continuous running. Moreover, the battery can charge both in the device and the battery charger. Plug and go.





For a more detailed description please follow this link to Hikmicro - LH19 2.0_Datasheet_V5.5.72_en-US_20231206 (hikmicrotech.com)



HIKMICRO LYNX 2.0 | Thermal Monocular (hikmicrotech.com)



Specification
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 384 × 288
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD less than 35 mk (@25°C), F#=1.0
Lens (Focal Length) 19 mm
Field of View 13.8° × 10.4° (H × V)
Digital Zoom 1 ×, 2 ×, 4 ×, 8 ×
Aperture F1.0
Magnification 1.86 to 14.88
Image Display
Monitor 0.4 inch, LCOS, 1280 × 960
FFC (Flat Field Correction) Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion
Frame Frequency 50 Hz
Smart Function
Wi-Fi Hot Spot Yes
Standby Mode Yes
Detection Range 897 m
System
Storage Built-in memory module (8 GB)
Record Video Yes
Capture Snapshot Yes
Power Supply
Battery Type Lithium battery
Battery Operating Time
7.5 hours continuous running with Wi-Fi hot spot function off (@25°C)
6 hours continuous running with Wi-Fi hot spot function on (@25°C)
Battery Capacity Display Yes
General
Power 5 VDC/2 A, 1.5 W, Type-C Interface
Working Temperature -20 °C to 55 °C (-4 °F to 131 °F)
Protection Level IP67
Dimension 171 mm × 61 mm × 57 mm (6.73" × 2.40" × 2.24")
Weight 310 g (0.68 lb
